X-ray Baggage Scanner
| Parameter | Specification |
|---|---|
| Tunnel Size (W × H) | 1510 × 1810 mm |
| Steel Penetration | 46 mm at 200 kV / 58 mm at 260 kV |
| Wire Resolution | 40 AWG |
| Penetration Resolution | 30 AWG |
| X-ray Leakage | <0.1 µGy/h |
| Tube Voltage | 200 kV |
| Tube Current | 1.0 mA |
| Image Storage | 100,000+ images |
| Imaging Modes | Dual-view (top-bottom / side-side) |
Key Features
- Dual-View Architecture: Two independent X-ray imaging chains capture orthogonal views simultaneously, reducing inspection time and improving detection accuracy.
- Image Enhancement: Advanced algorithms for contrast adjustment, edge sharpening, and histogram equalization for optimal image clarity.
- Material Viewing: Color-coded material classification helps operators quickly distinguish between organic, inorganic, and mixed materials.
- Zoom & Playback: Real-time zoom (up to 64×) and recorded playback functionality for detailed post-scan review.
- High-Capacity Storage: Built-in storage for 100,000+ scanned images with search and retrieval capabilities.
- Ultra-Low Radiation Leakage: Leakage dose below 0.1 µGy/h, meeting international safety standards for operator and environmental protection.
- Industrial-Grade Construction: Heavy-duty steel frame and conveyor rated for continuous operation in demanding logistics environments.
Applications

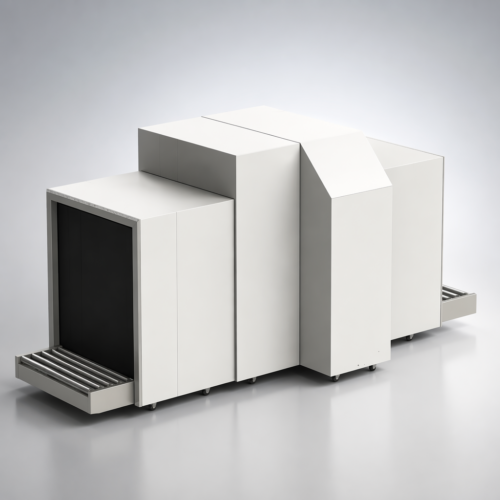

The VKJ-150180D is purpose-built for high-volume commercial and industrial screening environments:
- Cargo terminals and freight inspection stations
- Logistics parks and distribution centers
- Heavy freight warehouses and cross-dock facilities
- Pallet handling and bulk cargo screening
- Industrial supply chain security checkpoints
X-ray Baggage Scanner
X-ray Baggage Scanner
X-ray Baggage Scanner
X-ray Baggage Scanner
X-ray Baggage Scanner
X-ray Baggage Scanner
X-ray Baggage Scanner
X-ray Baggage Scanner
X-ray Baggage Scanner
| Parameter | Specification |
|---|---|
| Tunnel Size (W × H) | 615 × 454 mm |
| Steel Penetration | 30 mm at 140 kV / 38 mm at 160 kV |
| Wire Resolution | 40 AWG |
| Penetration Resolution | 32 AWG |
| Tube Voltage | 140–160 kV |
| Tube Current | 0.4–0.7 mA |
| Power Consumption | 0.5 kVA |
| Image Storage | 100,000+ images |
| Imaging Technology | Backscatter + Dual-Energy Transmission |
| Detector Type | Linear-array multi-energy |
Key Features
- Integrated Backscatter Imaging: Captures scattered X-rays to reveal low-density and organic materials that transmission imaging may miss, providing a more complete inspection picture.
- Dual-Energy Material Differentiation: Color-coded material classification based on effective atomic number, enabling rapid distinction between organic, inorganic, and mixed materials.
- Compact Tunnel Design: A 615 × 454 mm tunnel optimized for parcels, small packages, and hand-carried items in commercial environments.
- High-Resolution Detection: 40 AWG wire resolution and 32 AWG penetration resolution for detailed image quality.
- Extensive Image Archive: Onboard storage for 100,000+ images with search, retrieval, and playback functionality.
- Energy-Efficient Operation: Low power consumption of 0.5 kVA with adjustable tube voltage (140–160 kV) and current (0.4–0.7 mA) for optimized imaging.
- User-Friendly Workstation: Intuitive software interface with image enhancement tools, zoom, and annotation capabilities.
Applications

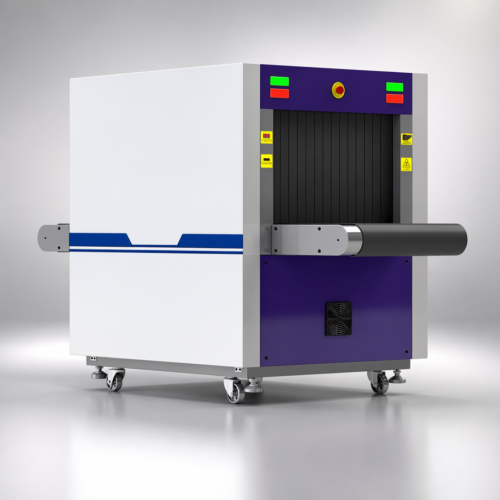

The VKJ-BK6040E is designed for commercial screening applications that require reliable parcel and package inspection:
- Logistics hubs and distribution centers
- Warehouses and storage facilities
- Hotels and hospitality venues
- Exhibition venues and conference centers
- Parcel screening and incoming mail rooms
X-ray Baggage Scanner
| Parameter | Specification |
|---|---|
| Tunnel Size (W × H) | 755 × 555 mm |
| Steel Penetration | 30–38 mm |
| Tube Voltage | 140–160 kV |
| Wire Resolution | 40 AWG |
| Penetration Resolution | 34 AWG |
| Display | 17-inch HD LCD |
| Image Storage | 100,000+ images |
| Imaging Technology | Backscatter + Transmission |
| Material Differentiation | Multi-energy color classification |
Key Features
- Large Tunnel Capacity: A 755 × 555 mm tunnel accommodates oversized luggage, large packages, and bulk items that standard scanners cannot process.
- Backscatter and Transmission Imaging: Dual imaging modes provide complementary views — transmission for dense object penetration and backscatter for organic material highlighting.
- 17-Inch HD LCD Display: A high-definition 17-inch LCD monitor delivers crisp, detailed images for accurate operator assessment.
- Image Enhancement Tools: Built-in enhancement algorithms including contrast adjustment, edge sharpening, and real-time zoom for detailed inspection.
- Playback and Archive: Recorded scan playback functionality with onboard storage for 100,000+ images, supporting post-scan review and audit requirements.
- Organic-Content Differentiation: Backscatter imaging provides superior detection and differentiation of organic materials, enhancing inspection thoroughness in commercial settings.
- Operator-Friendly Workstation: Intuitive user interface designed for high-throughput environments with minimal training requirements.
Applications
The VKJ-BK7555 is designed for commercial and industrial environments requiring reliable large-item screening:
- Logistics centers and freight forwarding hubs
- Warehouse entrances and receiving docks
- Commercial transport and courier facilities
- Parcel handling and distribution centers
