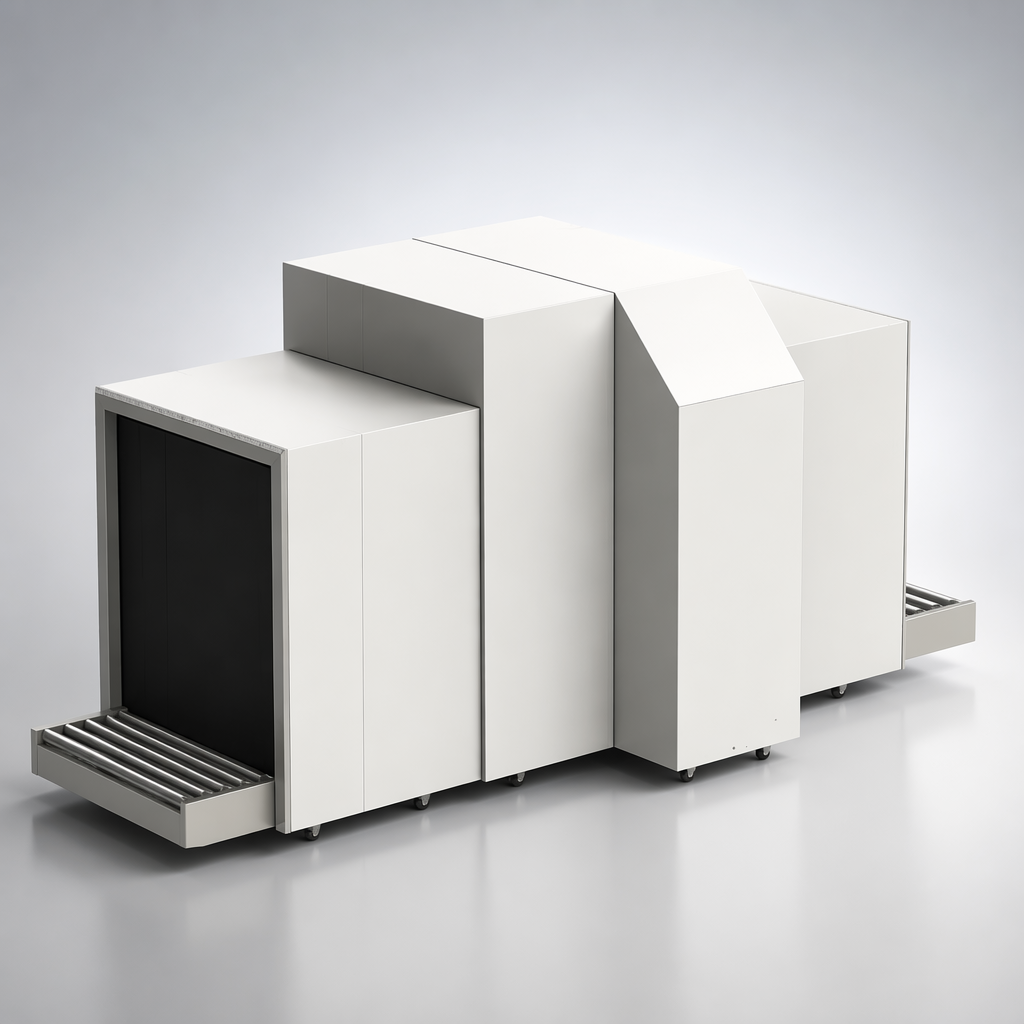

VKJ-150180D Dual-View Ultra-Large Cargo X-RProduct Overview
The VKJ-150180D is a dual-view ultra-large cargo X-ray inspection system engineered for high-throughput screening of oversized freight, palletized cargo, and bulk shipments. With an expansive tunnel opening of 1510 × 1810 mm, it accommodates large-format items that conventional scanners cannot process. The system employs dual-view imaging technology to deliver two perspective views in a single pass, significantly improving inspection coverage and reducing the need for re-scanning.
Dual-View Imaging Configuration
The VKJ-150180D supports two dual-view configurations to suit different operational workflows:
- Top-Bottom View: One X-ray generator positioned above and one below the tunnel, capturing overhead and underside perspectives simultaneously.
- Side-Side View: Two X-ray generators mounted on opposite sides of the tunnel, delivering left and right lateral views for comprehensive inspection coverage.
This dual-angle approach eliminates blind spots and provides operators with complementary visual data, enabling faster and more accurate screening decisions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Tunnel Size (W × H) | 1510 × 1810 mm |
| Steel Penetration | 46 mm at 200 kV / 58 mm at 260 kV |
| Wire Resolution | 40 AWG |
| Penetration Resolution | 30 AWG |
| X-ray Leakage | <0.1 µGy/h |
| Tube Voltage | 200 kV |
| Tube Current | 1.0 mA |
| Image Storage | 100,000+ images |
| Imaging Modes | Dual-view (top-bottom / side-side) |
Key Features
- Dual-View Architecture: Two independent X-ray imaging chains capture orthogonal views simultaneously, reducing inspection time and improving detection accuracy.
- Image Enhancement: Advanced algorithms for contrast adjustment, edge sharpening, and histogram equalization for optimal image clarity.
- Material Viewing: Color-coded material classification helps operators quickly distinguish between organic, inorganic, and mixed materials.
- Zoom & Playback: Real-time zoom (up to 64×) and recorded playback functionality for detailed post-scan review.
- High-Capacity Storage: Built-in storage for 100,000+ scanned images with search and retrieval capabilities.
- Ultra-Low Radiation Leakage: Leakage dose below 0.1 µGy/h, meeting international safety standards for operator and environmental protection.
- Industrial-Grade Construction: Heavy-duty steel frame and conveyor rated for continuous operation in demanding logistics environments.
Applications
The VKJ-150180D is purpose-built for high-volume commercial and industrial screening environments:
- Cargo terminals and freight inspection stations
- Logistics parks and distribution centers
- Heavy freight warehouses and cross-dock facilities
- Pallet handling and bulk cargo screening
- Industrial supply chain security checkpoints
