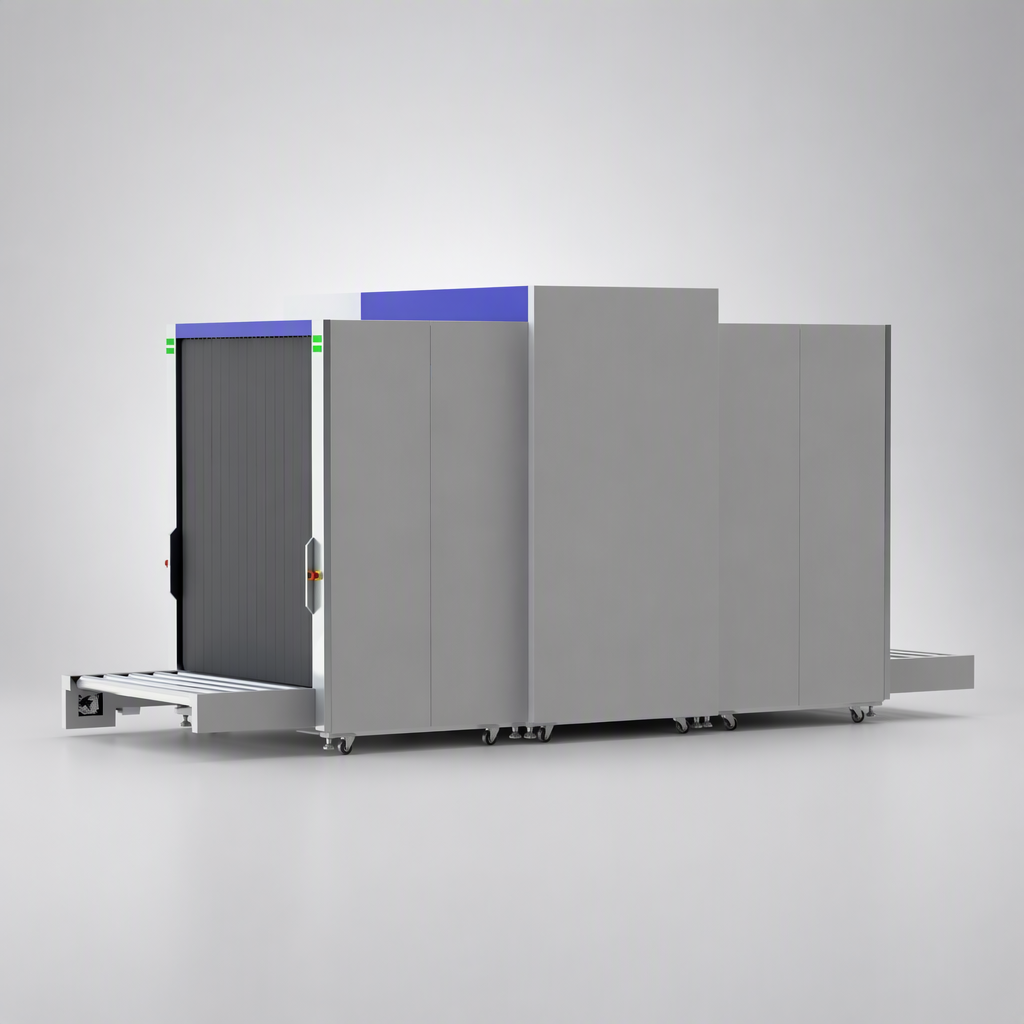

VKJ-150180 Ultra-Large Cargo X-Ray Inspection System
Send Inquiry![VKJ-150180D Dual-View Ultra-Large Cargo X-R<![CDATA[<h2>Product Overview</h2> <p>The VKJ-150180D is a dual-view ultra-large cargo X-ray inspection system engineered for high-throughput screening of oversized freight, palletized cargo, and bulk shipments. With an expansive tunnel opening of 1510 × 1810 mm, it accommodates large-format items that conventional scanners cannot process. The system employs dual-view imaging technology to deliver two perspective views in a single pass, significantly improving inspection coverage and reducing the need for re-scanning.</p> <h2>Dual-View Imaging Configuration</h2> <p>The VKJ-150180D supports two dual-view configurations to suit different operational workflows:</p> <ul> <li><strong>Top-Bottom View:</strong> One X-ray generator positioned above and one below the tunnel, capturing overhead and underside perspectives simultaneously.</li> <li><strong>Side-Side View:</strong> Two X-ray generators mounted on opposite sides of the tunnel, delivering left and right lateral views for comprehensive inspection coverage.</li> </ul> <p>This dual-angle approach eliminates blind spots and provides operators with complementary visual data, enabling faster and more accurate screening decisions.</p> <h2>Technical Specifications</h2> <table> <thead> <tr><th>Parameter</th><th>Specification</th></tr> </thead> <tbody> <tr><td>Tunnel Size (W × H)</td><td>1510 × 1810 mm</td></tr> <tr><td>Steel Penetration</td><td>46 mm at 200 kV / 58 mm at 260 kV</td></tr> <tr><td>Wire Resolution</td><td>40 AWG</td></tr> <tr><td>Penetration Resolution</td><td>30 AWG</td></tr> <tr><td>X-ray Leakage</td><td><0.1 µGy/h</td></tr> <tr><td>Tube Voltage</td><td>200 kV</td></tr> <tr><td>Tube Current</td><td>1.0 mA</td></tr> <tr><td>Image Storage</td><td>100,000+ images</td></tr> <tr><td>Imaging Modes</td><td>Dual-view (top-bottom / side-side)</td></tr> </tbody> </table> <h2>Key Features</h2> <ul> <li><strong>Dual-View Architecture:</strong> Two independent X-ray imaging chains capture orthogonal views simultaneously, reducing inspection time and improving detection accuracy.</li> <li><strong>Image Enhancement:</strong> Advanced algorithms for contrast adjustment, edge sharpening, and histogram equalization for optimal image clarity.</li> <li><strong>Material Viewing:</strong> Color-coded material classification helps operators quickly distinguish between organic, inorganic, and mixed materials.</li> <li><strong>Zoom & Playback:</strong> Real-time zoom (up to 64×) and recorded playback functionality for detailed post-scan review.</li> <li><strong>High-Capacity Storage:</strong> Built-in storage for 100,000+ scanned images with search and retrieval capabilities.</li> <li><strong>Ultra-Low Radiation Leakage:</strong> Leakage dose below 0.1 µGy/h, meeting international safety standards for operator and environmental protection.</li> <li><strong>Industrial-Grade Construction:</strong> Heavy-duty steel frame and conveyor rated for continuous operation in demanding logistics environments.</li> </ul> <h2>Applications</h2> <p>The VKJ-150180D is purpose-built for high-volume commercial and industrial screening environments:</p> <ul> <li>Cargo terminals and freight inspection stations</li> <li>Logistics parks and distribution centers</li> <li>Heavy freight warehouses and cross-dock facilities</li> <li>Pallet handling and bulk cargo screening</li> <li>Industrial supply chain security checkpoints</li> </ul>]]>ay Inspection System缩略图](https://www.metaldetectore.com/wp-content/uploads/2026/07/VKJ-150180D-100x100.png "VKJ-150180D Dual-View Ultra-Large Cargo X-R<![CDATA[<h2>Product Overview</h2> <p>The VKJ-150180D is a dual-view ultra-large cargo X-ray inspection system engineered for high-throughput screening of oversized freight, palletized cargo, and bulk shipments. With an expansive tunnel opening of 1510 × 1810 mm, it accommodates large-format items that conventional scanners cannot process. The system employs dual-view imaging technology to deliver two perspective views in a single pass, significantly improving inspection coverage and reducing the need for re-scanning.</p> <h2>Dual-View Imaging Configuration</h2> <p>The VKJ-150180D supports two dual-view configurations to suit different operational workflows:</p> <ul> <li><strong>Top-Bottom View:</strong> One X-ray generator positioned above and one below the tunnel, capturing overhead and underside perspectives simultaneously.</li> <li><strong>Side-Side View:</strong> Two X-ray generators mounted on opposite sides of the tunnel, delivering left and right lateral views for comprehensive inspection coverage.</li> </ul> <p>This dual-angle approach eliminates blind spots and provides operators with complementary visual data, enabling faster and more accurate screening decisions.</p> <h2>Technical Specifications</h2> <table> <thead> <tr><th>Parameter</th><th>Specification</th></tr> </thead> <tbody> <tr><td>Tunnel Size (W × H)</td><td>1510 × 1810 mm</td></tr> <tr><td>Steel Penetration</td><td>46 mm at 200 kV / 58 mm at 260 kV</td></tr> <tr><td>Wire Resolution</td><td>40 AWG</td></tr> <tr><td>Penetration Resolution</td><td>30 AWG</td></tr> <tr><td>X-ray Leakage</td><td><0.1 µGy/h</td></tr> <tr><td>Tube Voltage</td><td>200 kV</td></tr> <tr><td>Tube Current</td><td>1.0 mA</td></tr> <tr><td>Image Storage</td><td>100,000+ images</td></tr> <tr><td>Imaging Modes</td><td>Dual-view (top-bottom / side-side)</td></tr> </tbody> </table> <h2>Key Features</h2> <ul> <li><strong>Dual-View Architecture:</strong> Two independent X-ray imaging chains capture orthogonal views simultaneously, reducing inspection time and improving detection accuracy.</li> <li><strong>Image Enhancement:</strong> Advanced algorithms for contrast adjustment, edge sharpening, and histogram equalization for optimal image clarity.</li> <li><strong>Material Viewing:</strong> Color-coded material classification helps operators quickly distinguish between organic, inorganic, and mixed materials.</li> <li><strong>Zoom & Playback:</strong> Real-time zoom (up to 64×) and recorded playback functionality for detailed post-scan review.</li> <li><strong>High-Capacity Storage:</strong> Built-in storage for 100,000+ scanned images with search and retrieval capabilities.</li> <li><strong>Ultra-Low Radiation Leakage:</strong> Leakage dose below 0.1 µGy/h, meeting international safety standards for operator and environmental protection.</li> <li><strong>Industrial-Grade Construction:</strong> Heavy-duty steel frame and conveyor rated for continuous operation in demanding logistics environments.</li> </ul> <h2>Applications</h2> <p>The VKJ-150180D is purpose-built for high-volume commercial and industrial screening environments:</p> <ul> <li>Cargo terminals and freight inspection stations</li> <li>Logistics parks and distribution centers</li> <li>Heavy freight warehouses and cross-dock facilities</li> <li>Pallet handling and bulk cargo screening</li> <li>Industrial supply chain security checkpoints</li> </ul>]]>ay Inspection System缩略图")
Heavy-duty 3.5-ton system (1510x1810mm tunnel). Ideal for logistics hubs and pallet inspection.
Related products
X-ray Baggage Scanner
X-ray Baggage Scanner
X-ray Baggage Scanner
| Parameter | Specification |
|---|---|
| Tunnel Size (W × H) | 1510 × 1810 mm |
| Steel Penetration | 46 mm at 200 kV / 58 mm at 260 kV |
| Wire Resolution | 40 AWG |
| Penetration Resolution | 30 AWG |
| X-ray Leakage | <0.1 µGy/h |
| Tube Voltage | 200 kV |
| Tube Current | 1.0 mA |
| Image Storage | 100,000+ images |
| Imaging Modes | Dual-view (top-bottom / side-side) |
Key Features
- Dual-View Architecture: Two independent X-ray imaging chains capture orthogonal views simultaneously, reducing inspection time and improving detection accuracy.
- Image Enhancement: Advanced algorithms for contrast adjustment, edge sharpening, and histogram equalization for optimal image clarity.
- Material Viewing: Color-coded material classification helps operators quickly distinguish between organic, inorganic, and mixed materials.
- Zoom & Playback: Real-time zoom (up to 64×) and recorded playback functionality for detailed post-scan review.
- High-Capacity Storage: Built-in storage for 100,000+ scanned images with search and retrieval capabilities.
- Ultra-Low Radiation Leakage: Leakage dose below 0.1 µGy/h, meeting international safety standards for operator and environmental protection.
- Industrial-Grade Construction: Heavy-duty steel frame and conveyor rated for continuous operation in demanding logistics environments.
Applications
The VKJ-150180D is purpose-built for high-volume commercial and industrial screening environments:
- Cargo terminals and freight inspection stations
- Logistics parks and distribution centers
- Heavy freight warehouses and cross-dock facilities
- Pallet handling and bulk cargo screening
- Industrial supply chain security checkpoints
X-ray Baggage Scanner
X-ray Baggage Scanner
| Parameter | Specification |
|---|---|
| Tunnel Size (W × H) | 755 × 555 mm |
| Steel Penetration | 30–38 mm |
| Tube Voltage | 140–160 kV |
| Wire Resolution | 40 AWG |
| Penetration Resolution | 34 AWG |
| Display | 17-inch HD LCD |
| Image Storage | 100,000+ images |
| Imaging Technology | Backscatter + Transmission |
| Material Differentiation | Multi-energy color classification |
Key Features
- Large Tunnel Capacity: A 755 × 555 mm tunnel accommodates oversized luggage, large packages, and bulk items that standard scanners cannot process.
- Backscatter and Transmission Imaging: Dual imaging modes provide complementary views — transmission for dense object penetration and backscatter for organic material highlighting.
- 17-Inch HD LCD Display: A high-definition 17-inch LCD monitor delivers crisp, detailed images for accurate operator assessment.
- Image Enhancement Tools: Built-in enhancement algorithms including contrast adjustment, edge sharpening, and real-time zoom for detailed inspection.
- Playback and Archive: Recorded scan playback functionality with onboard storage for 100,000+ images, supporting post-scan review and audit requirements.
- Organic-Content Differentiation: Backscatter imaging provides superior detection and differentiation of organic materials, enhancing inspection thoroughness in commercial settings.
- Operator-Friendly Workstation: Intuitive user interface designed for high-throughput environments with minimal training requirements.
Applications
The VKJ-BK7555 is designed for commercial and industrial environments requiring reliable large-item screening:
- Logistics centers and freight forwarding hubs
- Warehouse entrances and receiving docks
- Commercial transport and courier facilities
- Parcel handling and distribution centers
X-ray Baggage Scanner
X-ray Baggage Scanner
| Parameter | Specification |
|---|---|
| Tunnel Size (W × H) | 615 × 454 mm |
| Steel Penetration | 30 mm at 140 kV / 38 mm at 160 kV |
| Wire Resolution | 40 AWG |
| Penetration Resolution | 32 AWG |
| Tube Voltage | 140–160 kV |
| Tube Current | 0.4–0.7 mA |
| Power Consumption | 0.5 kVA |
| Image Storage | 100,000+ images |
| Imaging Technology | Backscatter + Dual-Energy Transmission |
| Detector Type | Linear-array multi-energy |
Key Features
- Integrated Backscatter Imaging: Captures scattered X-rays to reveal low-density and organic materials that transmission imaging may miss, providing a more complete inspection picture.
- Dual-Energy Material Differentiation: Color-coded material classification based on effective atomic number, enabling rapid distinction between organic, inorganic, and mixed materials.
- Compact Tunnel Design: A 615 × 454 mm tunnel optimized for parcels, small packages, and hand-carried items in commercial environments.
- High-Resolution Detection: 40 AWG wire resolution and 32 AWG penetration resolution for detailed image quality.
- Extensive Image Archive: Onboard storage for 100,000+ images with search, retrieval, and playback functionality.
- Energy-Efficient Operation: Low power consumption of 0.5 kVA with adjustable tube voltage (140–160 kV) and current (0.4–0.7 mA) for optimized imaging.
- User-Friendly Workstation: Intuitive software interface with image enhancement tools, zoom, and annotation capabilities.
Applications
The VKJ-BK6040E is designed for commercial screening applications that require reliable parcel and package inspection:
- Logistics hubs and distribution centers
- Warehouses and storage facilities
- Hotels and hospitality venues
- Exhibition venues and conference centers
- Parcel screening and incoming mail rooms
