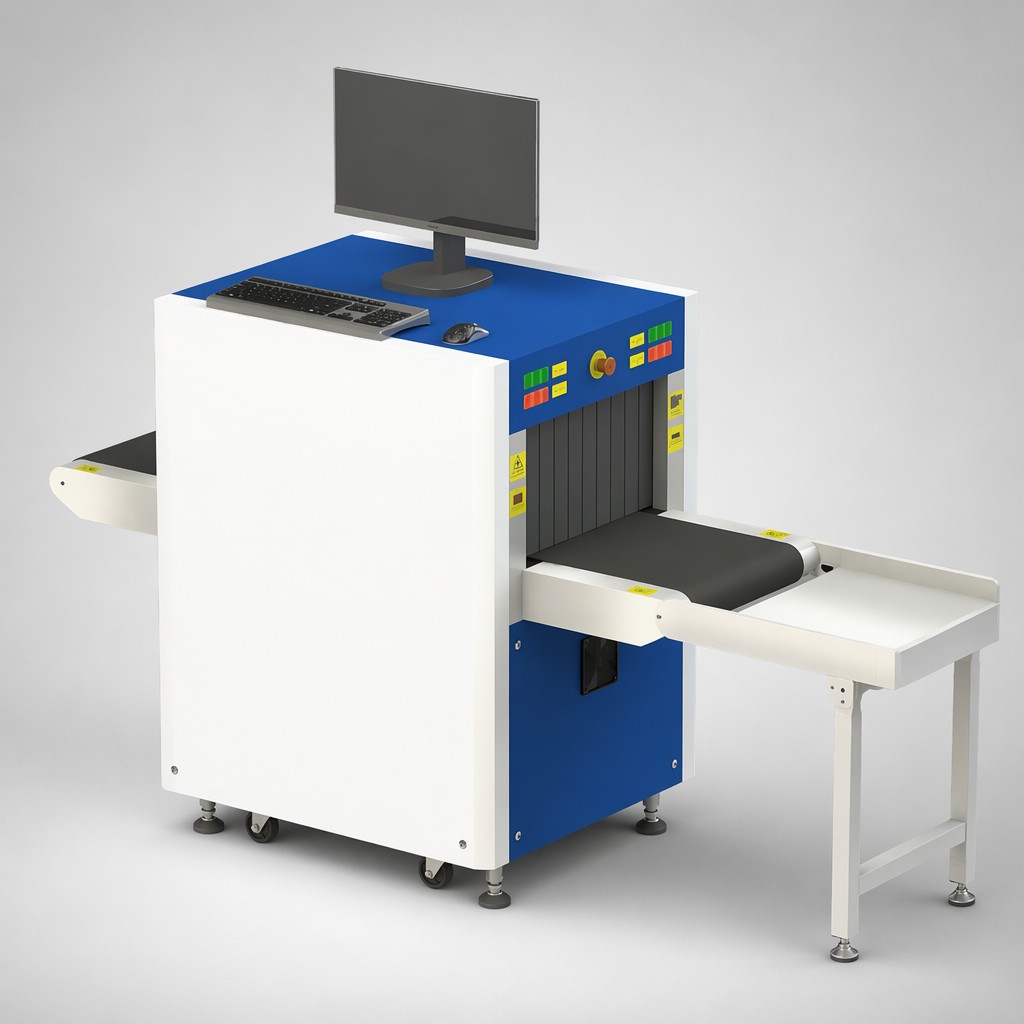

VKJ-5030C High-Penetration X-Ray Baggage Scanner
The VKJ-5030C is a high-penetration X-ray baggage scanner for inspection of luggage, parcels, and goods in commercial, logistics, transport, and public-service environments. Its adjustable 140–160 kV generator, high-resolution digital imaging, and durable conveyor system support reliable inspection in both permanent installations and temporary event layouts.
Key features
- 505 × 305 mm tunnel for standard baggage and parcel inspection.
- Up to 43 mm steel penetration at 160 kV and 40 AWG wire resolution.
- Adjustable 140–160 kV tube voltage and 0.4–1.25 mA tube current.
- Color, black-and-white, organic/inorganic, enhancement, grayscale, restoration, zoom, high/low energy, playback, and image storage functions.
- AI-assisted image review and optional recognition functions for efficient operator support.
- Industrial Mitsubishi PLC control, EMC-oriented design, and stable industrial computer platform.
- Shielding and safety design intended to keep leakage radiation close to natural background levels under compliant installation.
Technical specifications
| Dimensions | 1690 × 790 × 1210 mm (L × W × H) |
|---|---|
| Tunnel size | 505 × 305 mm (W × H) |
| Conveyor speed | 0.20 m/s |
| Conveyor height | 752 mm |
| Weight | 302 kg |
| Penetration | 34 mm steel at 140 kV; 43 mm steel at 160 kV |
| Wire resolution | 40 AWG |
| Penetration resolution | 34 AWG |
| Spatial resolution | Horizontal and vertical Φ1.0 mm |
| X-ray generator | Bottom-to-top; 140–160 kV adjustable; 0.4–1.25 mA adjustable |
| Cooling and duty cycle | Sealed oil cooling; 100% |
| Noise | <55 dB |
| Power supply | AC 220 V, 50 Hz |
| Power consumption | 0.45 kVA |
| Image storage | More than 100,000 images |
Applications
Suitable for logistics checkpoints, hotels, offices, schools, exhibition venues, passenger facilities, customs-related commercial workflows, and other locations requiring high-penetration baggage and parcel inspection.
