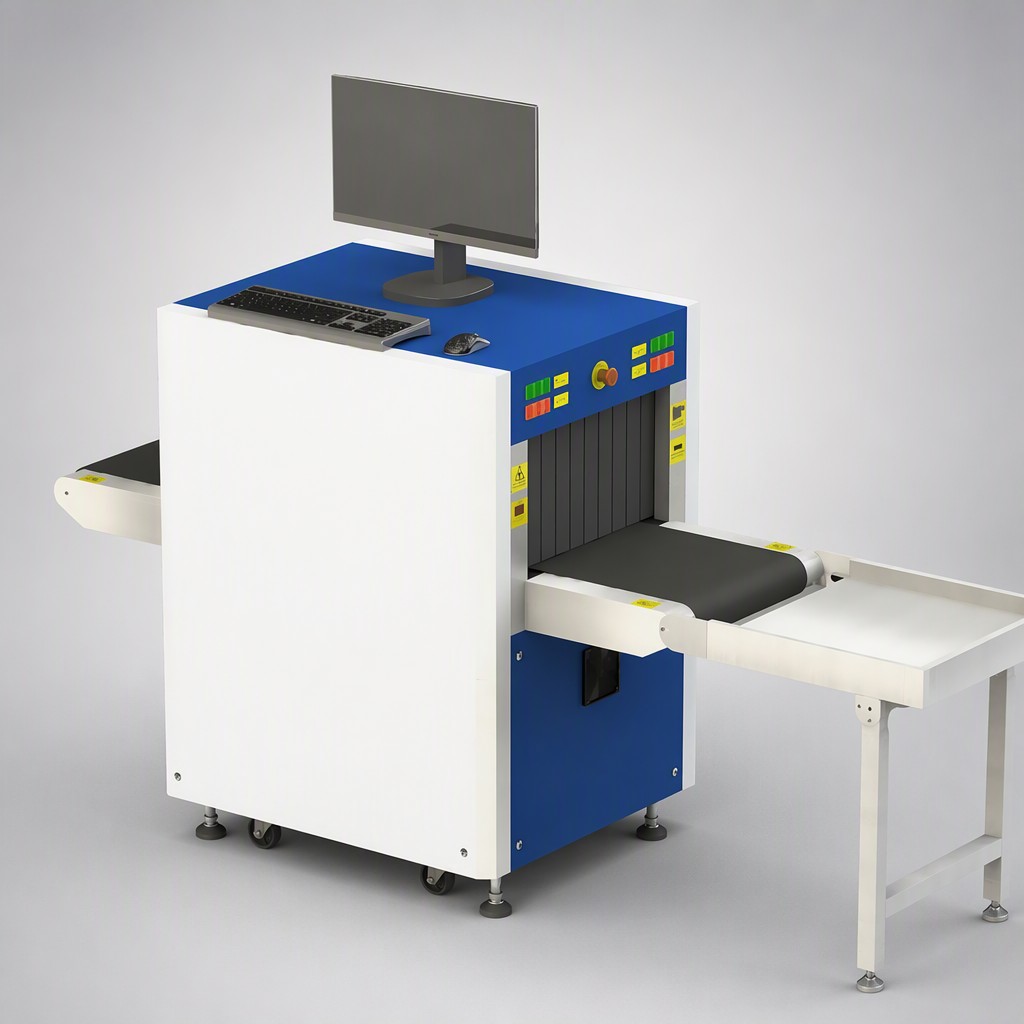

VKJ-5030A Compact X-Ray Baggage Scanner
The VKJ-5030A is a compact X-ray baggage scanner for non-intrusive inspection of luggage, parcels, and small goods in commercial and public-service environments. Its compact footprint, stable conveyor system, clear imaging, and practical image-processing tools make it suitable for hotels, schools, offices, logistics points, venues, and transport facilities.
Key features
- Compact 505 × 305 mm inspection tunnel for everyday baggage and parcel screening.
- 8 mm steel penetration and 40 AWG wire resolution.
- Bottom-to-top X-ray generation with an 80 kV tube and 0.6 mA tube current.
- Color, black-and-white, organic/inorganic, enhancement, grayscale, restoration, zoom, high/low energy, and image storage functions.
- Industrial Mitsubishi PLC control and international electrical components from ABB, Schneider, and Omron.
- Interroll electric rollers for smooth transport and simplified maintenance.
Technical specifications
| Dimensions | 1690 × 790 × 1210 mm (L × W × H) |
|---|---|
| Tunnel size | 505 × 305 mm (W × H) |
| Conveyor speed | 0.20 m/s |
| Conveyor height | 752 mm |
| Weight | 265 kg |
| Penetration | 8 mm steel |
| Wire resolution | 40 AWG |
| Penetration resolution | 34 AWG |
| Spatial resolution | Horizontal and vertical Φ1.0 mm |
| X-ray generator | Bottom-to-top; 80 kV; 0.6 mA |
| Cooling and duty cycle | Sealed oil cooling; 100% |
| Noise | <55 dB |
| Power supply | AC 220 V, 50 Hz |
| Power consumption | 0.45 kVA |
| Image storage | More than 100,000 images |
Applications
Suitable for hotel entrances, office buildings, schools, logistics checkpoints, exhibition venues, passenger facilities, and other commercial environments that require reliable inspection of bags and parcels.
