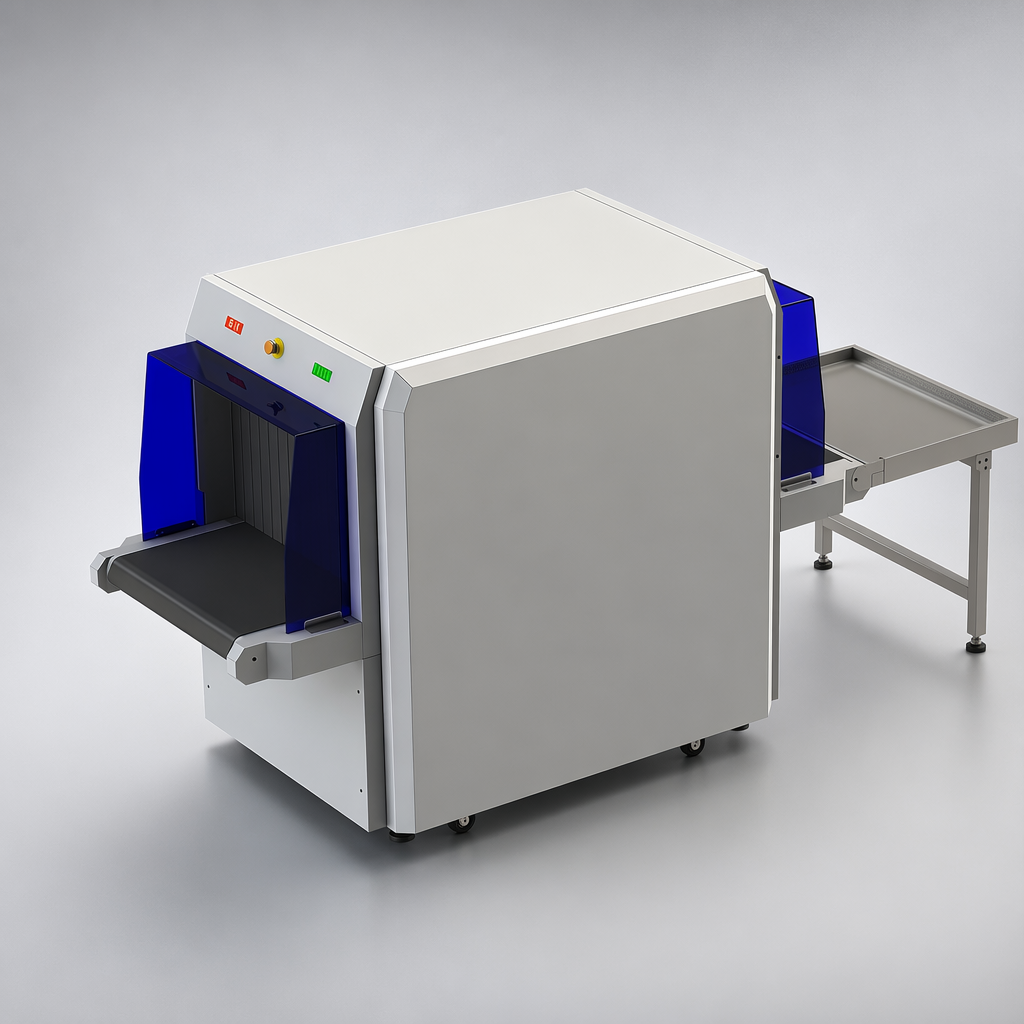

VKJ-BK7555 Backscatter X-Ray Inspection SystProduct Overview
The VKJ-BK7555 is a backscatter X-ray inspection system engineered for large baggage and parcel screening in commercial environments. Featuring a spacious 755 × 555 mm tunnel, it integrates backscatter and transmission imaging technologies to provide comprehensive inspection coverage for oversized items, packages, and bulk shipments that exceed the capacity of standard tunnel scanners.
Backscatter and Transmission Integrated Imaging
The VKJ-BK7555 combines dual-mode imaging to deliver superior inspection results. The transmission imaging channel provides high-resolution penetration views of dense contents, while the backscatter channel excels at highlighting organic and low-Z materials. This integrated approach enables operators to perform thorough non-intrusive inspection without compromising throughput.
Material Differentiation Capabilities
- Organic-Content Screening: Backscatter technology is highly sensitive to organic materials, enabling operators to identify and differentiate organic contents from inorganic items with greater confidence.
- Multi-Energy Material Classification: Color-coded imaging based on effective atomic number assists operators in rapidly distinguishing between material categories during screening.
- Non-Intrusive Inspection: The combined backscatter and transmission approach allows comprehensive content assessment without physical unpacking, preserving package integrity and workflow efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Tunnel Size (W × H) | 755 × 555 mm |
| Steel Penetration | 30–38 mm |
| Tube Voltage | 140–160 kV |
| Wire Resolution | 40 AWG |
| Penetration Resolution | 34 AWG |
| Display | 17-inch HD LCD |
| Image Storage | 100,000+ images |
| Imaging Technology | Backscatter + Transmission |
| Material Differentiation | Multi-energy color classification |
Key Features
- Large Tunnel Capacity: A 755 × 555 mm tunnel accommodates oversized luggage, large packages, and bulk items that standard scanners cannot process.
- Backscatter and Transmission Imaging: Dual imaging modes provide complementary views — transmission for dense object penetration and backscatter for organic material highlighting.
- 17-Inch HD LCD Display: A high-definition 17-inch LCD monitor delivers crisp, detailed images for accurate operator assessment.
- Image Enhancement Tools: Built-in enhancement algorithms including contrast adjustment, edge sharpening, and real-time zoom for detailed inspection.
- Playback and Archive: Recorded scan playback functionality with onboard storage for 100,000+ images, supporting post-scan review and audit requirements.
- Organic-Content Differentiation: Backscatter imaging provides superior detection and differentiation of organic materials, enhancing inspection thoroughness in commercial settings.
- Operator-Friendly Workstation: Intuitive user interface designed for high-throughput environments with minimal training requirements.
Applications
The VKJ-BK7555 is designed for commercial and industrial environments requiring reliable large-item screening:
- Logistics centers and freight forwarding hubs
- Warehouse entrances and receiving docks
- Commercial transport and courier facilities
- Parcel handling and distribution centers
