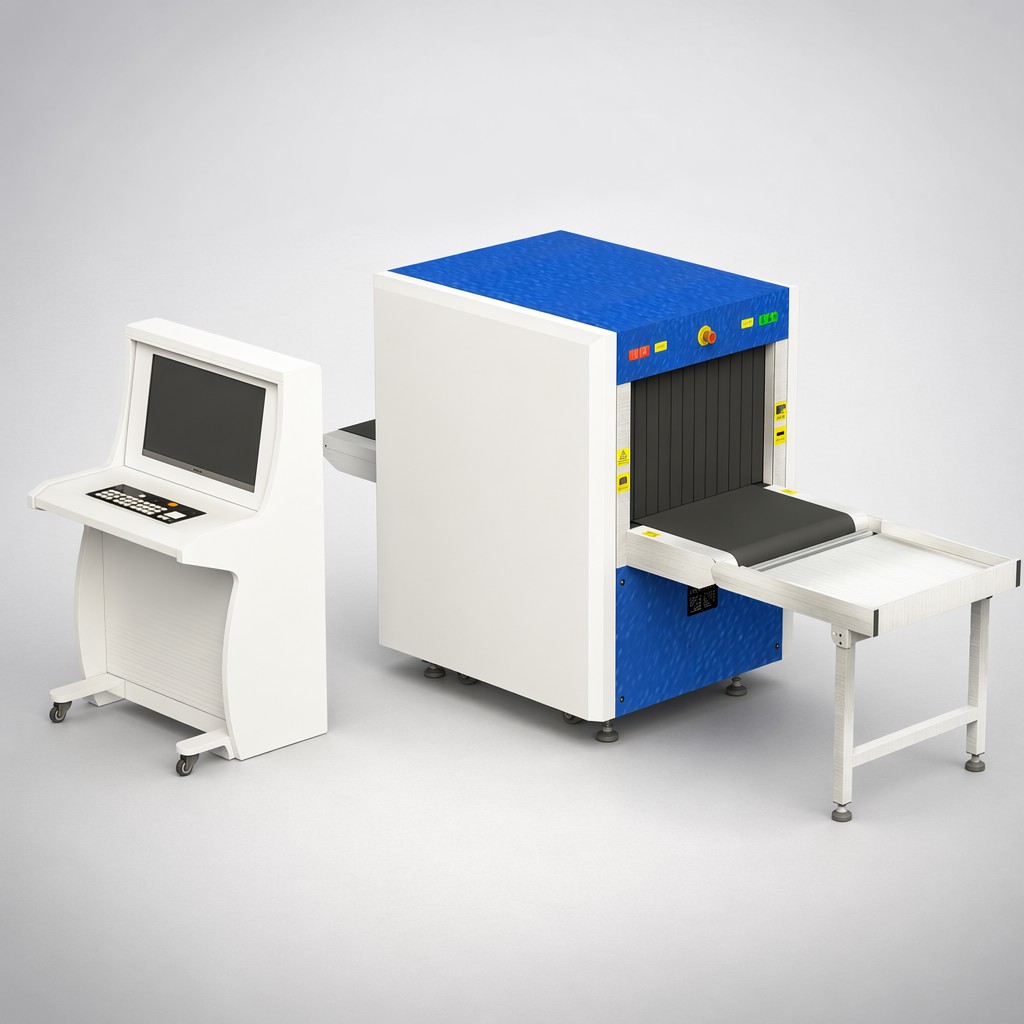

VKJ-6040 Professional X-Ray Baggage Scanner with AI
The VKJ-6040 is a professional X-ray baggage scanner with a 615 × 454 mm tunnel for luggage, parcels, and goods. It combines high-resolution digital imaging, AI-assisted image review, multi-energy material recognition, and a durable conveyor system for efficient inspection in logistics, transport, hospitality, education, and commercial facilities.
Key features
- Large 615 × 454 mm inspection tunnel for higher-volume baggage and parcel workflows.
- Up to 43 mm steel penetration at 160 kV and 40 AWG wire resolution.
- Adjustable 140–160 kV tube voltage and 0.4–1.25 mA tube current.
- AI-assisted image judgment, dangerous-liquid recognition support, high-density alert, and built-in self-test functions.
- Color/black-and-white, organic/inorganic, enhancement, grayscale, restoration, zoom, high/low energy, playback, and image storage above 100,000 images.
- One-key shutdown, industrial Mitsubishi PLC control, industrial computer, and ergonomic image review interface.
- Radiation shielding designed for protection close to natural background levels under compliant installation conditions.
Technical specifications
| Dimensions | 1845 × 865 × 1313 mm (L × W × H) |
|---|---|
| Tunnel size | 615 × 454 mm (W × H) |
| Conveyor speed | 0.20 m/s |
| Conveyor height | 700 mm |
| Weight | 354 kg |
| Penetration | 34 mm steel at 140 kV; 43 mm steel at 160 kV |
| Wire resolution | 40 AWG |
| Penetration resolution | 34 AWG |
| Spatial resolution | Horizontal and vertical Φ1.0 mm |
| X-ray generator | Bottom-to-top; 140–160 kV adjustable; 0.4–1.25 mA adjustable |
| Cooling and duty cycle | Sealed oil cooling; 100% |
| Noise | <55 dB |
| Power supply | AC 220 V, 50 Hz |
| Power consumption | 0.5 kVA |
| Image storage | More than 100,000 images |
Applications
Suitable for logistics centers, transport facilities, hotels, schools, exhibition halls, commercial buildings, and other environments requiring efficient inspection of luggage and parcels.
