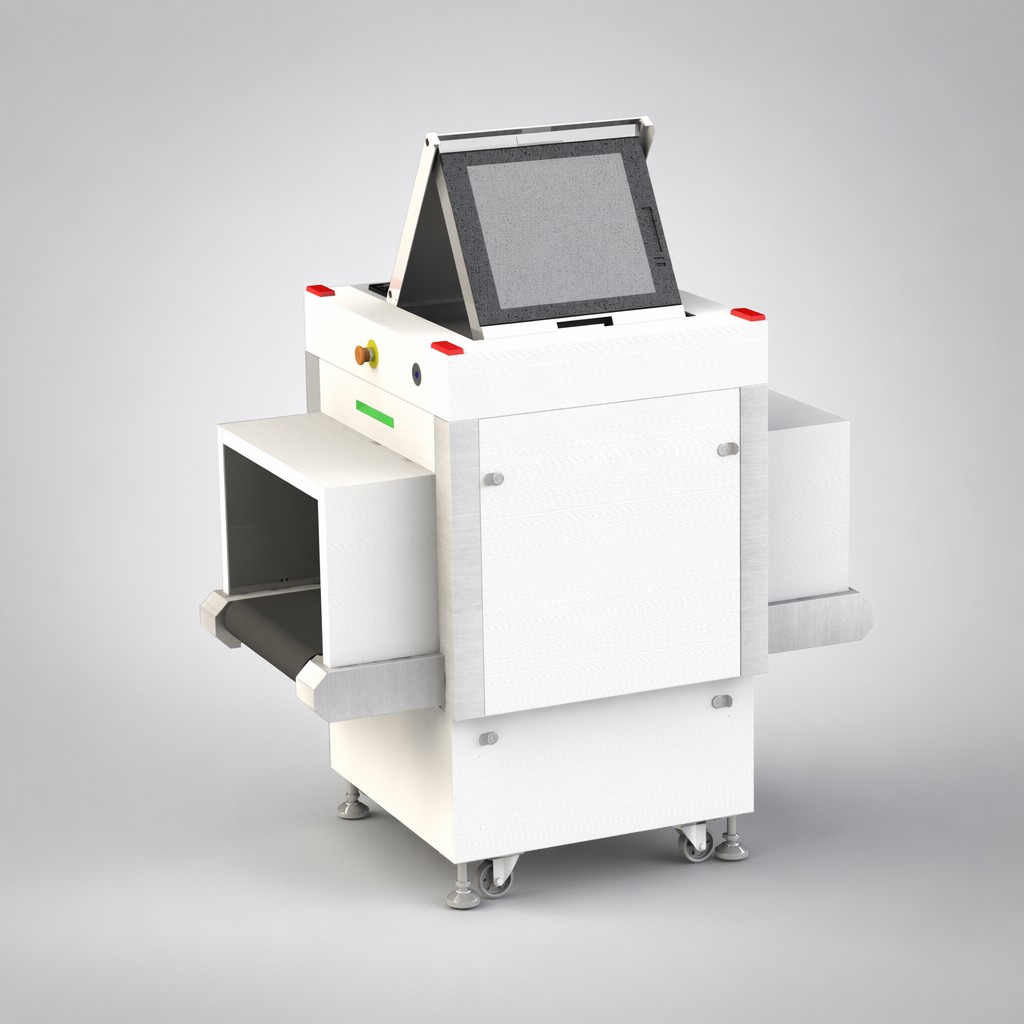

VKJ-5332 Detachable Portable X-Ray Baggage Scanner
The VKJ-5332 is a detachable, space-saving X-ray baggage scanner designed for luggage, parcels, and goods in locations where installation space is limited. Its compact structure can be separated for table-top or flexible placement, providing practical inspection capability without the footprint of a conventional full-size scanner.
Key features
- Detachable structure for flexible transport, placement, and installation.
- 531 × 332 mm inspection tunnel for luggage and parcels.
- 24 mm steel penetration at 100 kV and 40 AWG wire resolution.
- Top-to-bottom X-ray generation with adjustable 0.4–0.7 mA tube current.
- Color/black-and-white, organic/inorganic, enhancement, grayscale, restoration, zoom, high/low energy, playback, and image storage functions.
- Optional multi-color viewing and assisted image recognition functions.
- One-key shutdown, high-density alert, self-diagnosis, ergonomic image review, and radiation shielding designed for compliant installation.
Technical specifications
| Dimensions | 1024 × 759 × 812 mm (L × W × H) |
|---|---|
| Tunnel size | 531 × 332 mm (W × H) |
| Conveyor speed | 0.20 m/s |
| Weight | 102 kg |
| Penetration | 24 mm steel plate at 100 kV |
| Wire resolution | 40 AWG |
| Penetration resolution | 24 AWG |
| Spatial resolution | Horizontal and vertical Φ1.0 mm |
| X-ray generator | Top-to-bottom; 100 kV; 0.4–0.7 mA adjustable |
| Cooling and duty cycle | Sealed oil cooling; 100% |
| Power supply | AC 220 V, 50 Hz |
| Power consumption | 0.45 kVA |
| Storage | More than 100,000 images |
Applications
Suitable for reception areas, offices, hotels, schools, exhibitions, cultural venues, small logistics points, and other commercial locations with restricted installation space.
