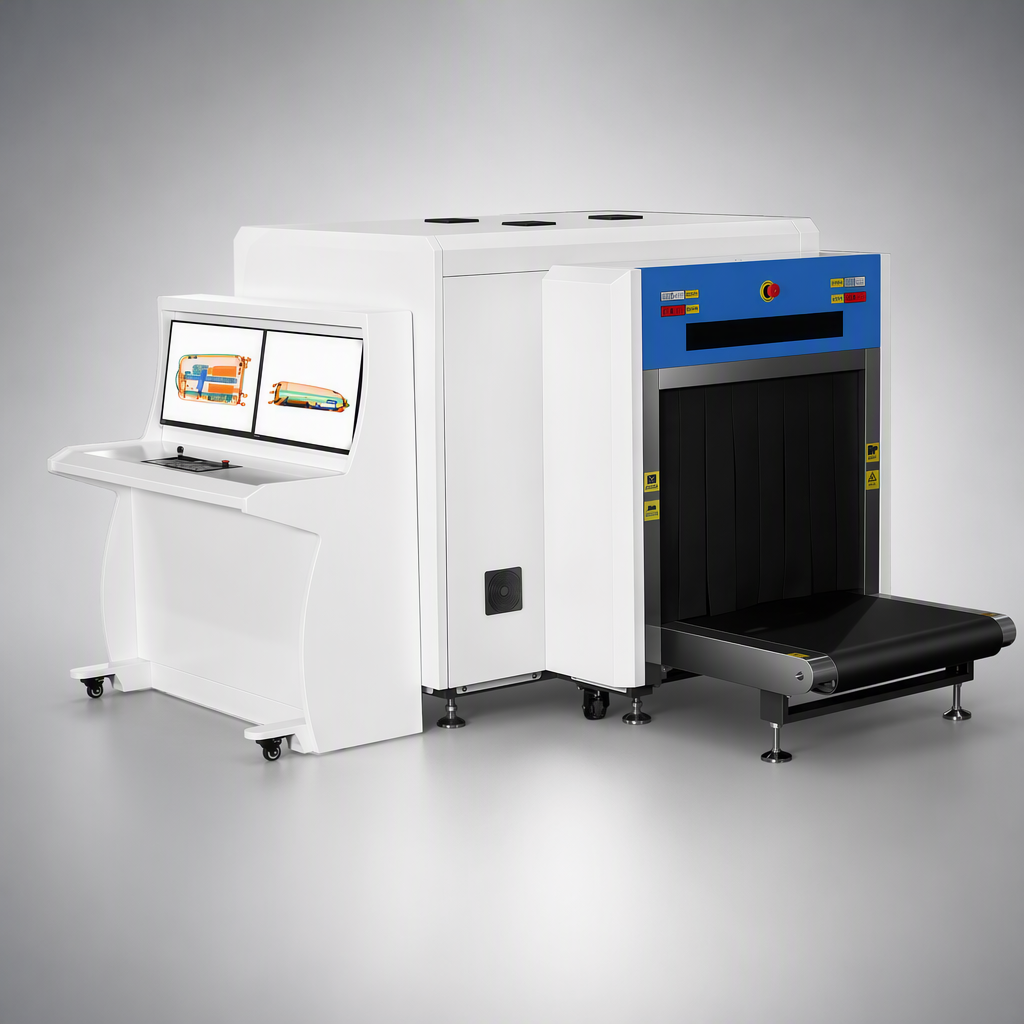

VKJ-8065D Dual-View X-Ray Baggage Scanner for Large Parcels
The VKJ-8065D is a dual-view, dual-energy X-ray baggage scanner designed for large parcels, luggage, and logistics shipments. Its 805 × 655 mm tunnel, multi-angle imaging, and material-color differentiation support efficient non-intrusive inspection in commercial logistics and transport environments.
Key features
- Dual-view imaging from top and side angles for improved image coverage.
- 805 × 655 mm tunnel and conveyor load up to 200 kg.
- Adjustable 140–160 kV X-ray generator with 34 mm steel penetration.
- 40 AWG wire resolution and 32 AWG penetration resolution.
- AI-assisted image recognition, liquid recognition support, self-test, and diagnostic prompts.
- Organic, inorganic, and mixed materials displayed in differentiated colors.
- 24-inch HD display, image enhancement, zoom, playback, and storage for more than 100,000 images.
Technical specifications
| Dimensions | 3080 × 1495 × 1393 mm |
|---|---|
| Tunnel size | 805 × 655 mm |
| Conveyor speed | 0.20 ± 0.02 m/s |
| Conveyor height | 304 mm |
| Conveyor load | 200 kg |
| Penetration | 34 mm steel plate |
| Wire resolution | 40 AWG |
| Single inspection dose | ≤3.0 µGy |
| Leakage dose rate | <1.0 µGy/h |
| X-ray generator | Top-bottom and side-side; 140–160 kV adjustable |
| Pass rate | Up to 720 pieces per hour |
| Monitor | 24-inch HD LCD |
Applications
Suitable for logistics hubs, cargo terminals, transport facilities, customs-related commercial workflows, exhibition venues, and other high-throughput parcel inspection environments.
