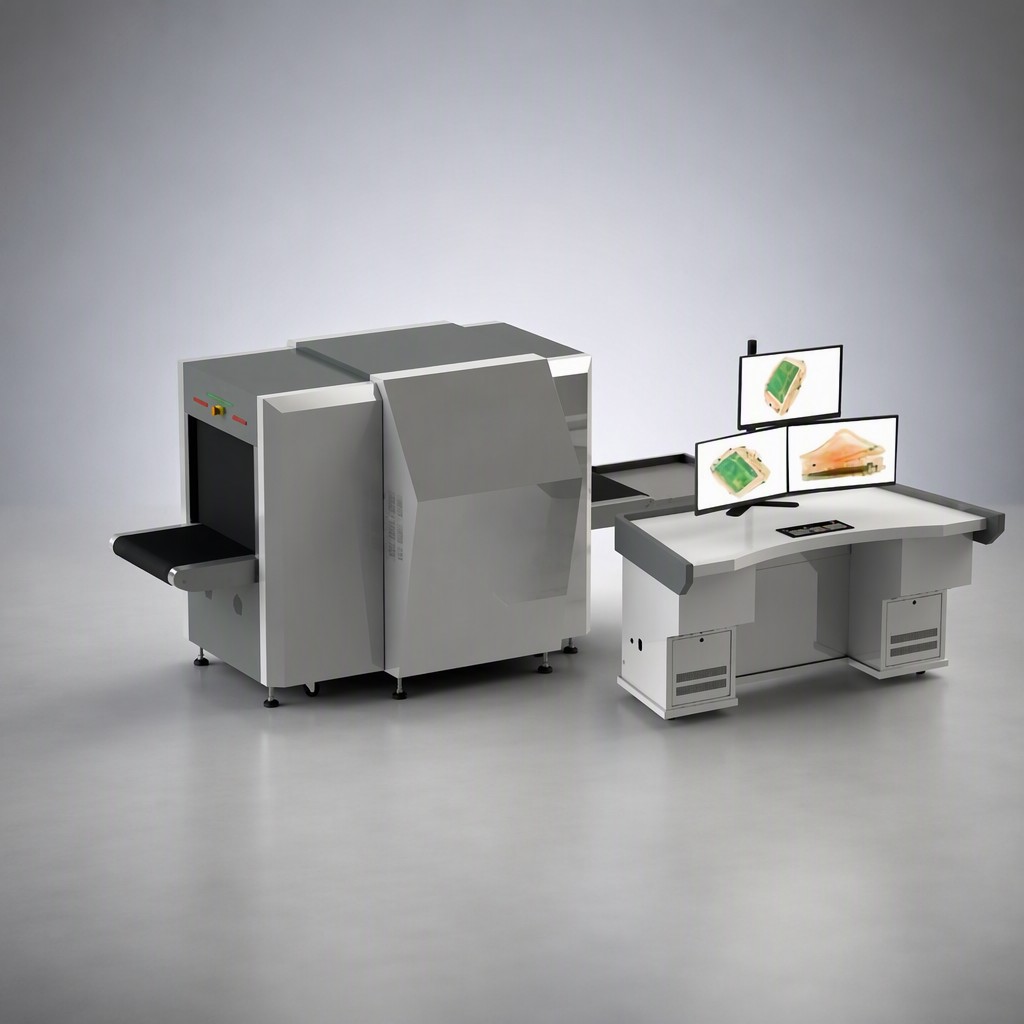

VKJ-6550F Intelligent Multi-View X-Ray Inspection System

Backscatter and Transmission Integrated Imaging

The VKJ-BK7555 combines dual-mode imaging to deliver superior inspection results. The transmission imaging channel provides high-resolution penetration views of dense contents, while the backscatter channel excels at highlighting organic and low-Z materials. This integrated approach enables operators to perform thorough non-intrusive inspection without compromising throughput.

Material Differentiation Capabilities

• Organic-Content Screening: Backscatter technology is highly sensitive to organic materials, enabling operators to identify and differentiate organic contents from inorganic items with greater confidence.
• Multi-Energy Material Classification: Color-coded imaging based on effective atomic number assists operators in rapidly distinguishing between material categories during screening.
• Non-Intrusive Inspection: The combined backscatter and transmission approach allows comprehensive content assessment without physical unpacking, preserving package integrity and workflow efficiency.

Technical Specifications

Key Features

• Large Tunnel Capacity: A 755 × 555 mm tunnel accommodates oversized luggage, large packages, and bulk items that standard scanners cannot process.
• Backscatter and Transmission Imaging: Dual imaging modes provide complementary views — transmission for dense object penetration and backscatter for organic material highlighting.
• 17-Inch HD LCD Display: A high-definition 17-inch LCD monitor delivers crisp, detailed images for accurate operator assessment.
• Image Enhancement Tools: Built-in enhancement algorithms including contrast adjustment, edge sharpening, and real-time zoom for detailed inspection.
• Playback and Archive: Recorded scan playback functionality with onboard storage for 100,000+ images, supporting post-scan review and audit requirements.
• Organic-Content Differentiation: Backscatter imaging provides superior detection and differentiation of organic materials, enhancing inspection thoroughness in commercial settings.
• Operator-Friendly Workstation: Intuitive user interface designed for high-throughput environments with minimal training requirements.

Applications

The VKJ-BK7555 is designed for commercial and industrial environments requiring reliable large-item screening:

• Logistics centers and freight forwarding hubs
• Warehouse entrances and receiving docks
• Commercial transport and courier facilities
• Parcel handling and distribution centers
