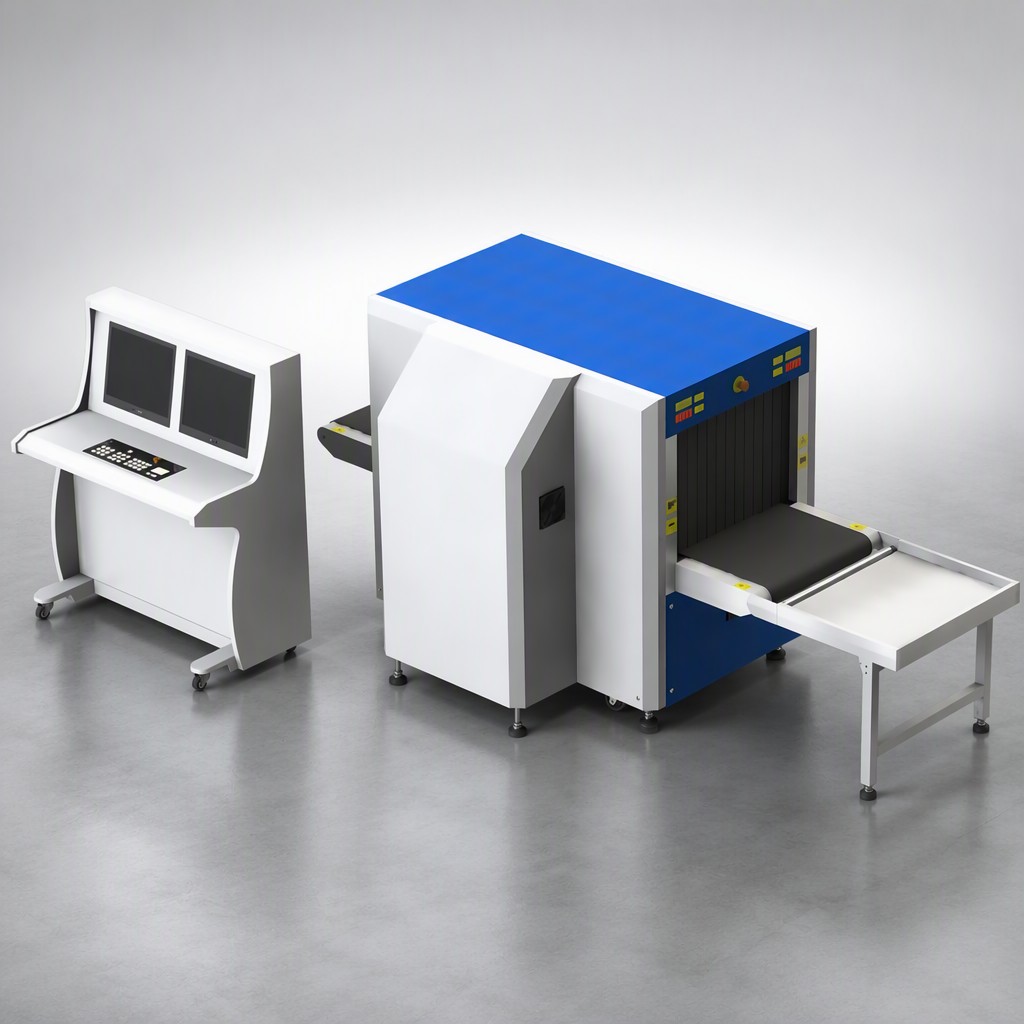

Powerful dual-energy imaging and dual-view scanning system. Provides enhanced detection accuracy with both bottom and side views. Engineered for logistics hubs, customs, and high-risk environments.
Related products
X-ray Baggage Scanner
| Dimensions | 1024 × 759 × 812 mm (L × W × H) |
|---|---|
| Tunnel size | 531 × 332 mm (W × H) |
| Conveyor speed | 0.20 m/s |
| Weight | 102 kg |
| Penetration | 24 mm steel plate at 100 kV |
| Wire resolution | 40 AWG |
| Penetration resolution | 24 AWG |
| Spatial resolution | Horizontal and vertical Φ1.0 mm |
| X-ray generator | Top-to-bottom; 100 kV; 0.4–0.7 mA adjustable |
| Cooling and duty cycle | Sealed oil cooling; 100% |
| Power supply | AC 220 V, 50 Hz |
| Power consumption | 0.45 kVA |
| Storage | More than 100,000 images |
Applications
Suitable for reception areas, offices, hotels, schools, exhibitions, cultural venues, small logistics points, and other commercial locations with restricted installation space.
Sale!
X-ray Baggage Scanner
X-ray Baggage Scanner
X-ray Baggage Scanner
| Parameter | Specification |
|---|---|
| Tunnel Size (W × H) | 615 × 454 mm |
| Steel Penetration | 30 mm at 140 kV / 38 mm at 160 kV |
| Wire Resolution | 40 AWG |
| Penetration Resolution | 32 AWG |
| Tube Voltage | 140–160 kV |
| Tube Current | 0.4–0.7 mA |
| Power Consumption | 0.5 kVA |
| Image Storage | 100,000+ images |
| Imaging Technology | Backscatter + Dual-Energy Transmission |
| Detector Type | Linear-array multi-energy |
Key Features
- Integrated Backscatter Imaging: Captures scattered X-rays to reveal low-density and organic materials that transmission imaging may miss, providing a more complete inspection picture.
- Dual-Energy Material Differentiation: Color-coded material classification based on effective atomic number, enabling rapid distinction between organic, inorganic, and mixed materials.
- Compact Tunnel Design: A 615 × 454 mm tunnel optimized for parcels, small packages, and hand-carried items in commercial environments.
- High-Resolution Detection: 40 AWG wire resolution and 32 AWG penetration resolution for detailed image quality.
- Extensive Image Archive: Onboard storage for 100,000+ images with search, retrieval, and playback functionality.
- Energy-Efficient Operation: Low power consumption of 0.5 kVA with adjustable tube voltage (140–160 kV) and current (0.4–0.7 mA) for optimized imaging.
- User-Friendly Workstation: Intuitive software interface with image enhancement tools, zoom, and annotation capabilities.
Applications
The VKJ-BK6040E is designed for commercial screening applications that require reliable parcel and package inspection:
- Logistics hubs and distribution centers
- Warehouses and storage facilities
- Hotels and hospitality venues
- Exhibition venues and conference centers
- Parcel screening and incoming mail rooms
