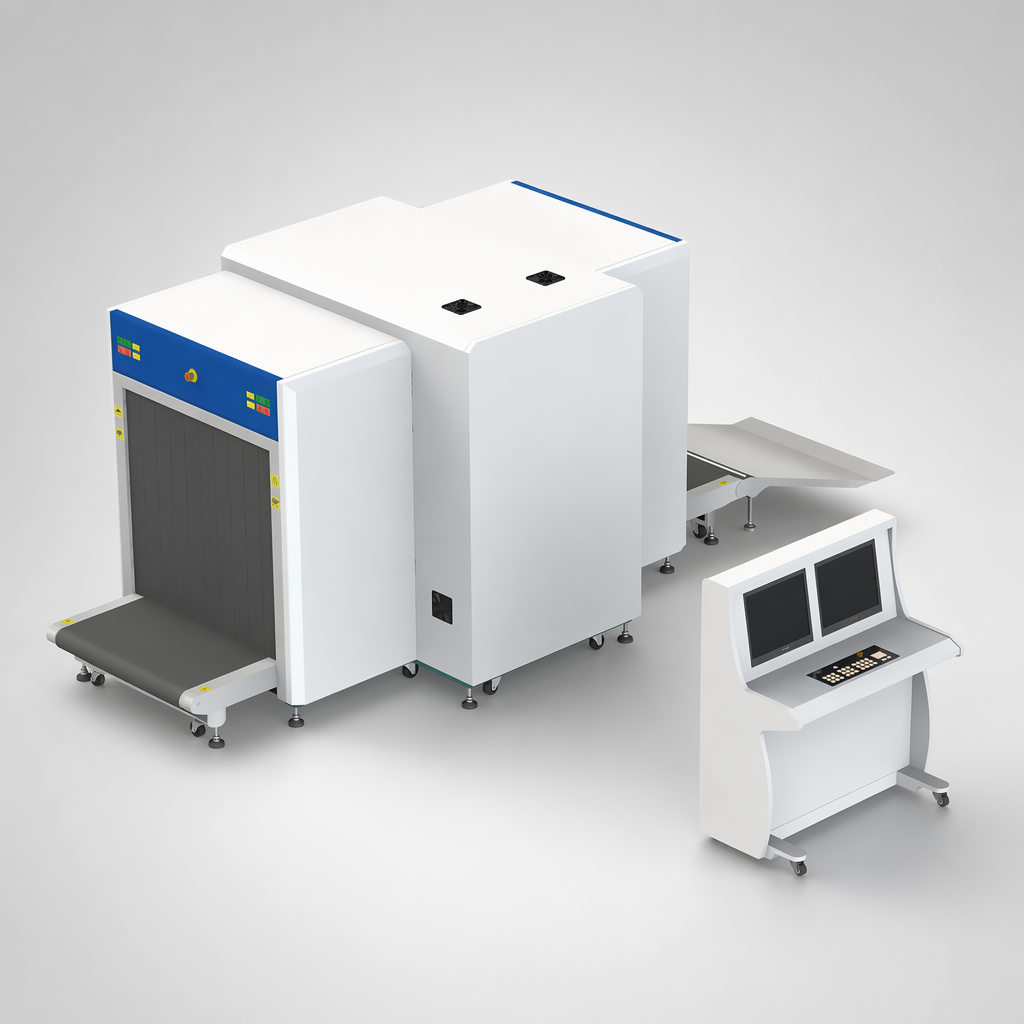

VKJ-100100D Dual-View Dual-Energy Cargo X-Ray Scanner
The VKJ-100100D is a dual-view, dual-energy X-ray cargo scanner for oversized parcels, freight, and palletized goods. Top-bottom and side-side imaging improves coverage while material differentiation helps operators review large items efficiently in logistics and commercial inspection environments.
Key features
- Dual-view imaging with top-bottom and side-side X-ray generation.
- 1005 × 1005 mm tunnel and conveyor load up to 200 kg.
- 40 mm steel penetration with adjustable 100–160 kV output.
- 40 AWG wire resolution and 32 AWG penetration resolution.
- Low leakage design with leakage dose below 0.1 µGy/h.
- Color, organic/inorganic, enhancement, grayscale, zoom, playback, self-test, and image storage above 100,000 records.
- Industrial PLC control, ergonomic review platform, and radiation shielding.
Technical specifications
| Dimensions | 3782 × 1695 × 1743 mm |
|---|---|
| Tunnel size | 1005 × 1005 mm |
| Conveyor speed | 0.20 ± 0.02 m/s |
| Maximum conveyor load | 200 kg |
| Penetration | 40 mm steel plate |
| Wire resolution | ≤40 AWG |
| Penetration resolution | ≤32 AWG |
| Single inspection dose | ≤3.0 µGy |
| X-ray generator | Top-bottom and side-side; 100–160 kV adjustable |
| Tube current | 0.4–1.2 mA adjustable |
| Leakage dose rate | <0.1 µGy/h |
| Image storage | More than 100,000 images |
Applications
Suitable for freight terminals, logistics hubs, bonded warehouses, cargo handling centers, customs-related commercial inspection, and other large-item screening workflows.
