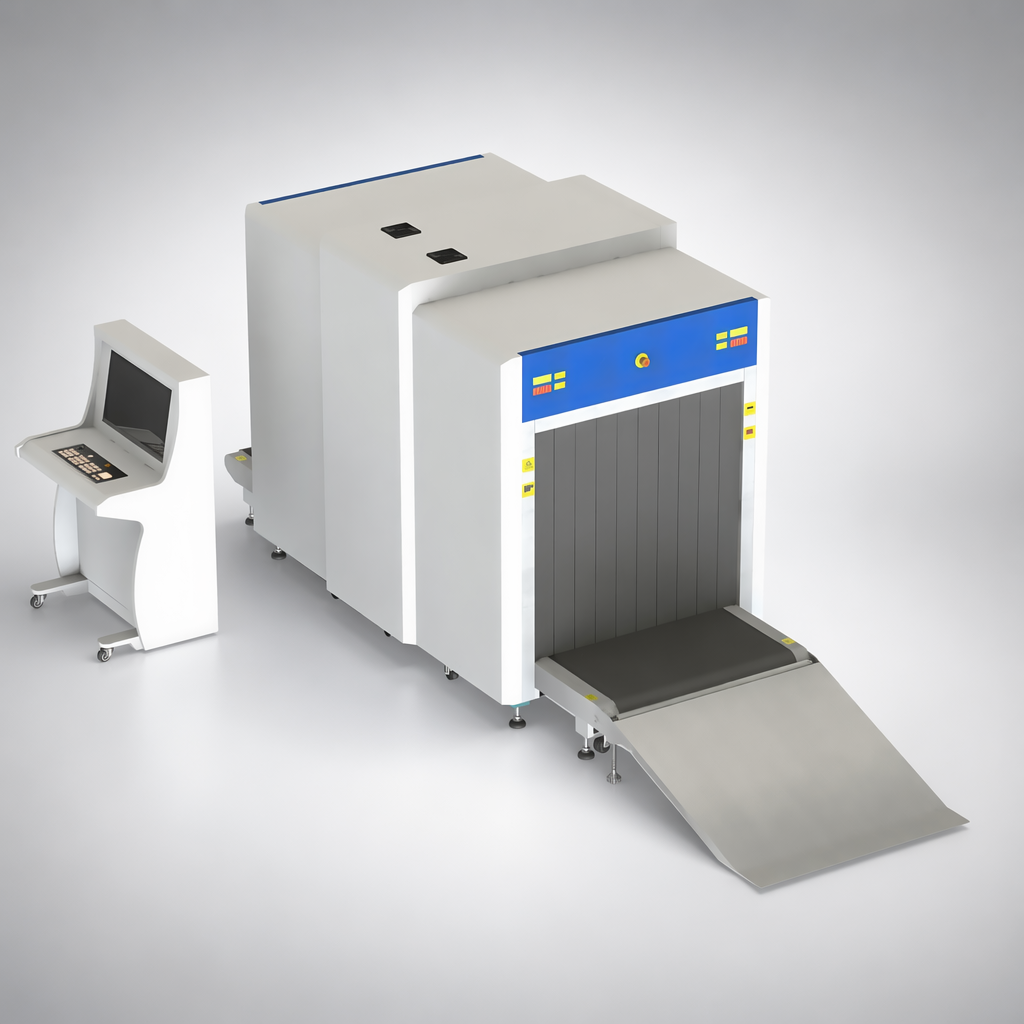

VKJ-100100 Large Tunnel X-Ray Cargo Scanner
The VKJ-100100 is a large-tunnel X-ray cargo scanner for oversized luggage, parcels, and freight. Its 1005 × 1005 mm tunnel and stable conveyor platform support non-intrusive inspection in logistics hubs, warehouses, cargo terminals, and commercial transport operations.
Key features
- 1005 × 1005 mm tunnel for large luggage, parcels, and cargo items.
- Adjustable 140–160 kV X-ray generator with up to 34 mm steel penetration.
- 40 AWG wire resolution and 32 AWG penetration resolution.
- Digital image enhancement, color and grayscale viewing, zoom, playback, and image restoration.
- High-density alert, automatic self-diagnosis, one-key shutdown, and image storage for more than 100,000 records.
- Industrial PLC control, industrial computer, ergonomic image review, and radiation shielding.
Technical specifications
| Dimensions | 3450 × 1365 × 1744 mm |
|---|---|
| Tunnel size | 1005 × 1005 mm |
| Conveyor speed | 0.20–0.22 m/s |
| Conveyor height | 304 mm |
| Weight | 771 kg |
| Penetration | 30 mm steel at 140 kV; 34 mm steel at 160 kV |
| Wire resolution | 40 AWG |
| Penetration resolution | 32 AWG |
| X-ray generator | Top-bottom; 140–160 kV adjustable; 0.4–1.2 mA adjustable |
| Power consumption | 0.8 kVA |
| Image storage | More than 100,000 images |
Applications
Suitable for logistics distribution centers, warehouse entrances, cargo inspection stations, customs-related commercial workflows, express sorting centers, and large parcel handling facilities.
