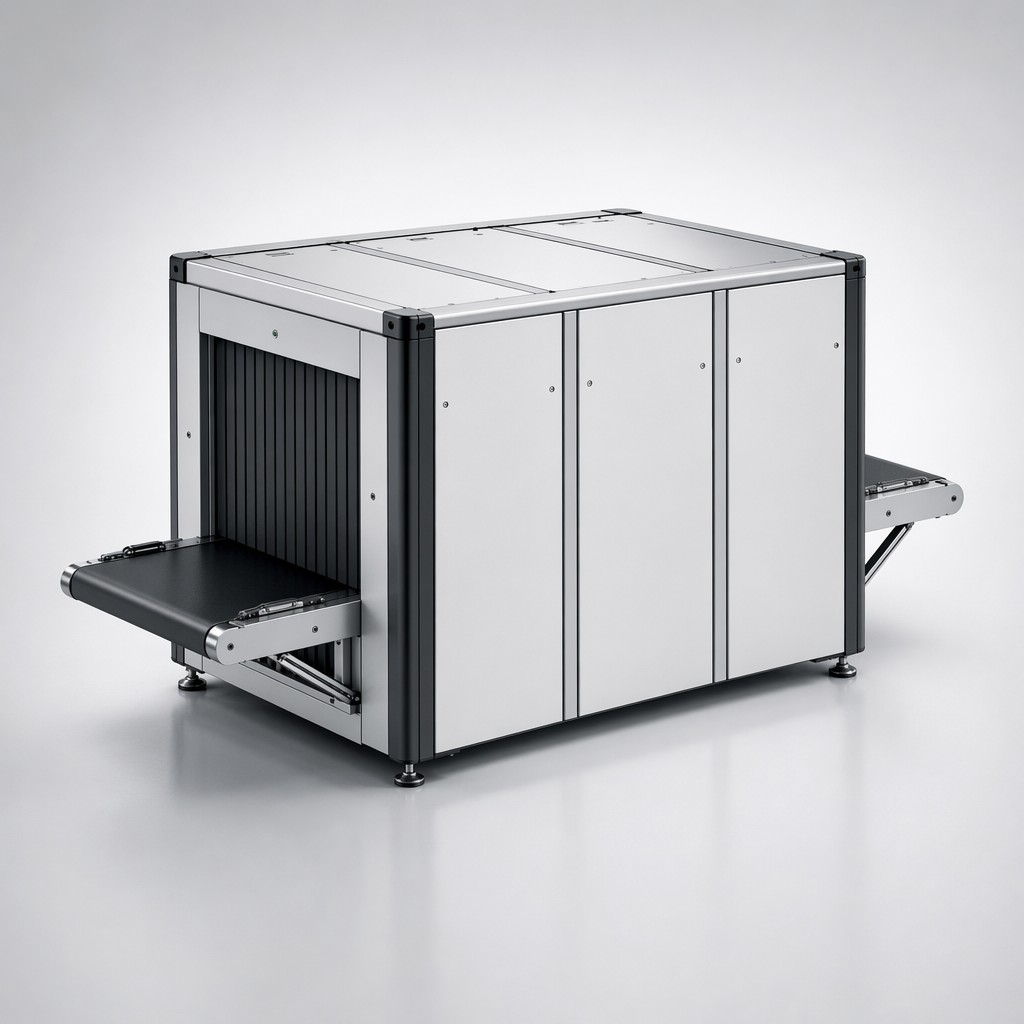

VKX100100H Dual-Energy X-Ray Cargo Inspection System
The VKX100100H is a dual-energy X-ray cargo inspection system designed for suitcases, oversized luggage, medium-to-large parcels, and logistics shipments. Its 1005 × 1005 mm tunnel and 250 kg evenly distributed conveyor load support efficient inspection in customs, cargo inspection stations, bus terminals, highway checkpoints, and express logistics centers.
Key Features
- Modular architecture: Optimized internal circuit layout improves interference resistance, serviceability, and long-term stability.
- Full-digital imaging: ASIC-based digital acquisition provides clear images and reliable image processing.
- Smart software: RTOS real-time processing, TIP support, assisted alerts, remote management, and rapid image backup.
- Operational automation: One-key start and stop, infrared energy-saving sensing, emergency prompts, and self-diagnosis.
- Professional operator platform: Human-centered interface, advanced image tools, and a customized inspection keyboard.
Technical Specifications
| Tunnel size | 1005 × 1005 mm (W × H) |
|---|---|
| Conveyor speed | 0.22 m/s |
| Maximum load | 250 kg, evenly distributed |
| Penetration ability | ≥ 38 mm steel plate |
| Wire resolution | ≥ 38 AWG |
| Spatial resolution | Horizontal/vertical Φ 1.0 mm |
| Conveyor height | 705 mm |
| Tube voltage | 160 kV, adjustable |
| Tube current | 0.6–1.2 mA, adjustable |
| Cooling and duty cycle | Sealed oil cooling with industrial fan heat dissipation; 100% duty cycle |
| Leakage dose rate | < 0.5 µGy/h, measured at 5 cm from the shell |
| Single dose | < 5.0 µGy |
| Net weight | 1200 kg |
| Maximum power consumption | 0.8 kW |
| Power supply | AC 220 V ±10%, 60 Hz ±5% |
| Noise level | < 58 dB(A) |
Radiation Safety
Dual-layer lead curtains at the tunnel entrance and exit, together with lead shielding on the system body, support compliant radiation protection for operators and surrounding personnel. Final compliance should be confirmed against the applicable local regulations and installation requirements.
Applications
Suitable for cargo inspection stations, customs and border logistics, bus and highway terminals, express sorting centers, warehouses, and other commercial logistics environments requiring non-intrusive inspection of large luggage and parcels.
