X-ray luggage Scanner 8065A
The X-ray luggage Scanner 8065A is a high-performance, multi-functional X-ray security screening system, meticulously designed to meet the rigorous demands of high-traffic areas requiring thorough security checks. Integrating advanced image processing technology with user-friendly features, this scanner ensures rapid and precise identification of prohibited and hazardous items within luggage.
Key Technical Highlights:
- Versatile Image Processing: Offers a range of display modes including color, grayscale, negative, and advanced image enhancement functions such as zoom, organic/inorganic discrimination, significantly enhancing detection accuracy.
- Smart System Management: Features intelligent roller (energy-saving function), self-diagnostic startup, and automatic calibration, ensuring optimal operation. Supports multi-level user access control, TIP management, and curve diagnostics for secure and efficient operation.
- User-Friendly Operation: Simplifies shutdown with a one-key operation, while its robust image storage and retrieval system, capable of storing over 2.5 million images, allows for easy transfer to other computers for review.
- Exceptional Scanning Performance: With an 80cm(width) * 65cm(height) scanning tunnel, a conveyor belt speed of 0.23M/S, and a load capacity up to 200kg, it boasts penetration power through 11mm steel, ensuring in-depth inspection of objects with varying densities.
- Safe and Eco-Friendly Design: Ensures a single inspection dose below 1μGy and a leakage radiation dose rate less than 1μSv/h at 10cm from the equipment surface, compliant with the latest national standards. Dual-layer lead curtains effectively prevent radiation leaks, safeguarding operators and the environment.
- Premium Hardware Configuration: Equipped with an embedded industrial control host, a 500GB hard drive, a 19-inch LCD monitor with an independent operating console, an L-shaped high-definition digital detector array, and an oil-cooled plus external fan-cooled X-ray generator, guaranteeing stable operation and longevity.
Special Features:
- Bi-directional Scanning Option: Offers optional bi-directional scanning for added flexibility and efficiency.
- Attention to Safety Details: Includes a standard exit tray to prevent item drops and anti-pinch designs for user safety.
The X-ray Baggage Scanner 8065A Security Scanner, with its outstanding performance, high level of intelligence, and meticulous safety considerations, is the ideal choice for airports, train stations, government facilities, large event venues, and any critical security checkpoint demanding the utmost in security screening capabilities.

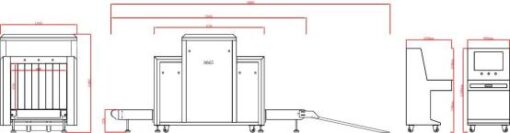

Inspection Machine 8065A Specifications
Accessories Configuration
|
Frame |
Laser cutting processing, powder coating, anti-corrosion and rust-proof; |
| Receiving Rack |
Standard receiving rack at the exit, to prevent items from falling and getting damaged, anti-pinch design at the connection for safe and reliable operation. |
|
Motor |
Variable frequency motor, silent straight-line electric drum motor. Speed adjustable from 0-0.25m/s. |
| Main Unit |
Embedded industrial control host, 500G hard drive. Capable of storing up to 2.5 million images. |
|
Monitor |
19-inch LCD monitor, VGA interface. Comes with a separate control desk. |
| X-ray Detector |
L-shaped detection array, high-definition digital detection board. |
|
X-ray Generator |
Tube voltage 80KV, tube current 0.6mA (adjustable); sealed oil cooling + external air cooling. |
| Electrical Circuitry |
PCB main control circuit, clear identification, Meanwell power supply; |
|
Lead Curtain |
1 layer of lead curtain at the front and back, staggered installation for efficient radiation protection. |
Device Functions
|
Image Display Processing |
Color, grayscale, inverse color, mixed, high penetration, low penetration, enhancement, reduction, local enhancement, edge+, edge-, brighten, darken, organic, inorganic, magnification with mouse middle button; |
|
System Functions |
Intelligent drum (energy-saving feature), self-check upon power-up, automatic calibration, multi-level user management, image management, TIP management, curve diagnosis, system device information, various formats of image storage, image query. |
|
One-key Power-off |
o power off, simply rotate the key for a safe shutdown. |
| Self-check upon Power-up |
After powering on, the system automatically checks if all accessories are functioning properly. |
|
Image Storage |
Supports various formats of image storage, can be easily transferred to other computers for review; image storage capacity is greater than 2.5 million images; |
| Bidirectional Scanning |
Can scan and produce images in both forward and reverse directions (optional feature). |
Performance Indicators
|
Tunnel Size |
80cm (W) * 65cm (H) |
| Conveyor Speed |
0.23m/s |
|
Max. Load Cap. |
200 kg |
| Penetrating |
11mm steel plate |
|
Line Resolution |
Φ0.0787mm metal wire |
| Penetrating Resolution |
Φ0.127mm metal wire |
|
Spatial Resolution |
Φ1.0mm |
| Single Check Dose |
Less than 1μGy |
|
Leakage Radiation Dose Rate |
Less than 1μSv/h (10cm away from the outer surface of the device), in compliance with the new national standard GB15208.1-2018. |
