Unlocking Advanced Security: The Evolution of Portable X-Ray Baggage Scanners**
**Key Features of Portable X-Ray Baggage Scanners:**
**Benefits of Portable X-Ray Baggage Scanners:**

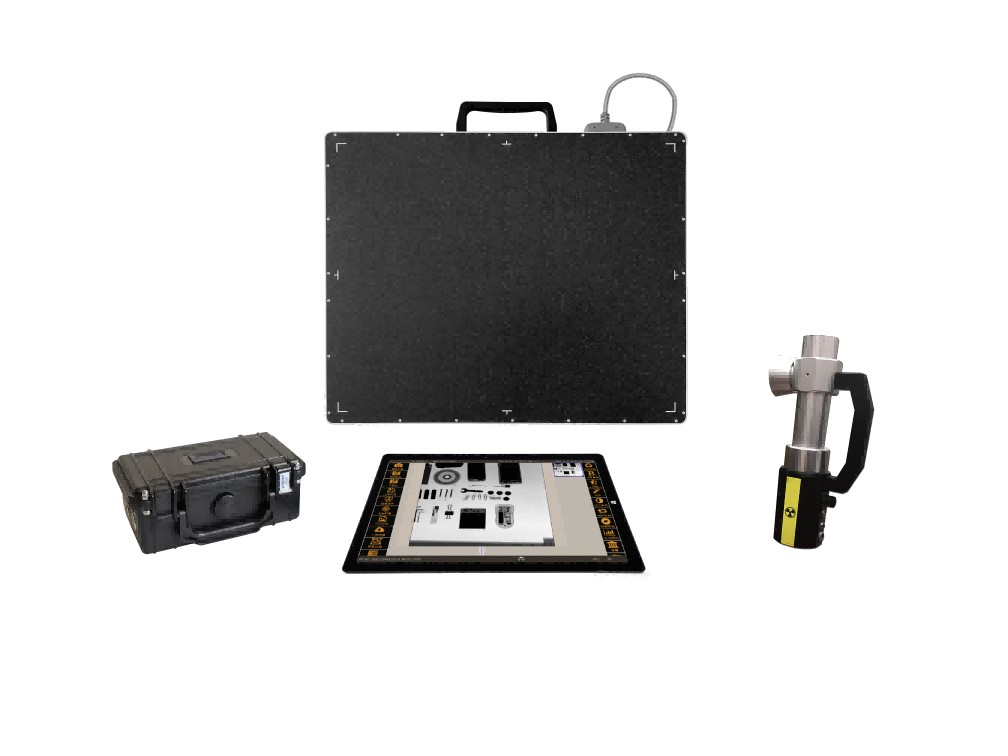

The ultra-thin portable X-ray inspection device is an extremely slim, lightweight, and high-definition X-ray imaging system. It employs a modular design, consisting of a light source, a receiving screen, data processing terminal, and more, making it easy to set up and use quickly on-site.
Technical Specifications of the Receiving Screen
- Material: Amorphous silicon.
- Imaging Size: 430mm x 350mm.
- Dimensions: 460mm x 460mm x 15mm.
- Spatial Resolution: 4 lines per millimeter (lp/mm), capable of distinguishing 0.03mm fine wires.
- Image Resolution: 2560 x 3072.
- Thickness: 15mm.
- Weight: 3.5kg.
- Blind Spot: Not greater than 18mm both above and below.
- Image Dynamic Range: 16 bits, 65536 grayscale levels.
- Wired Communication: Compatible with 100 Mbps and 1 Gbps Ethernet (GbitE).
- Wireless Communication: Two options available – 2.4GHz and 5.8GHz.
- Operating/Storage Temperature/Humidity: Temperature: 55±2°C / -15±3°C to 55°C / 15 hours; Humidity: 93±3% (non-condensing) continuous operation for 48 hours.
X-ray Source Technical Parameters
X-ray Machine Technical Parameters: (Compatible with optional X-ray sources such as XRS-3, xr200, CP120, etc.)
（2）Output Voltage: Continuously adjustable from 0 to 85KV,
with continuous constant current.
（3）X-ray Penetration Capability: 120mm aluminum
plate (20mm steel plate).
（4）Dual-purpose charging and triggering interface, effectively reducing
the number of cable connections.
（5）Stainless steel plated dust and waterproof button with connection indicator.
（6）Anti-misoperation handle design (adjustment knob is directly below the handle, and all switch and button interfaces are within the protective range of the handle).
（7）Power Source: Battery, dual-use for both AC and DC.
Software and Data Processing Terminal Parameters
- Computer Display: 14 inches or larger, with Windows 7 or higher operating system.
- 8GB or more of RAM and 512GB or more of solid-state drive.
- Utilizes a bilingual (Chinese and English) user interface with touch control capability.
- Full-screen touch operation allows adjustment of image processing, including zooming, shrinking, grayscale, and brightness, through finger gestures.
- Equipped with basic functions including image capture, image storage, image measurements, pseudo-color, and more.
- Features automatic processing capabilities, which can automatically process captured images to achieve the best results and present them within the software.

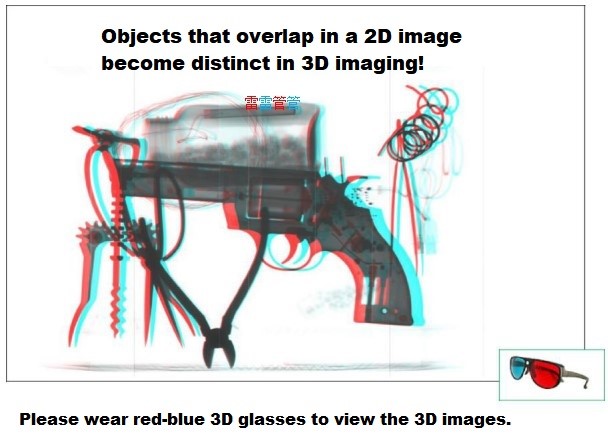

- Equipped with automatic/manual stitching functionality, capable of stitching not less than 9 images, and includes 3D capabilities.
- Image processing functions include edge enhancement, negative imaging, pseudo-color, stitching, labeling, zooming, rotating, mirroring, embossing, dimension measurements, and the ability to search files under different conditions.
Application Scope and Scenarios
- In security, explosive disposal, and surveillance scenarios, the device is used for the real-time perspective observation of suspicious items to eliminate harmful or dangerous materials (explosives, explosive timing devices, firearms, and controlled devices). This enhances work efficiency and reduces the risk to personnel.
- In secure and confidential facilities, the device is employed for searching various types of eavesdropping and surveillance devices, among other security purposes.
- Used for security inspections in drug control, technical investigation, customs, and other law enforcement and security purposes.
