Logistic security screening X RAY Cargo Scanner

“Enhance Logistics Security with the Lostic X-Ray Cargo Scanner

Elevate your cargo screening capabilities with the Lostic X-Ray Cargo Scanner – a state-of-the-art solution designed for advanced security in logistics. This cutting-edge system employs X-ray technology to deliver thorough and efficient inspections, ensuring the highest level of protection for your shipments.

### Introducing the Lostic X-Ray Cargo Scanner: A New Era in Logistics Security

Elevate the safety and efficiency of your logistics operations with the innovative Lostic X-Ray Cargo Scanner. This state-of-the-art security screening solution is meticulously designed for the unique needs of cargo and freight, ensuring that your logistics operations run smoothly and securely. With its advanced technology, the Lostic X-Ray Cargo Scanner is your first line of defense against potential threats and contraband, guaranteeing compliance and peace of mind in a complex logistics landscape.

Advanced Detection Capabilities

– **Cutting-edge Technology:** Utilizes high-resolution X-ray imaging to provide detailed insights into cargo contents, ensuring accurate detection of prohibited items and potential threats.

– **Comprehensive Screening:** Capable of screening various sizes and types of cargo, from pallets to containers, enhancing security measures across all logistics channels.

Optimized for Efficiency

– **Fast and Reliable:** Designed to keep up with the demands of busy logistics environments, offering rapid scanning capabilities without sacrificing accuracy, thereby reducing downtime and enhancing throughput.

– **User-friendly Interface:** Equipped with an intuitive control system, making it easy for operators to manage screenings and interpret results effectively, minimizing training requirements and operational errors.

Ensuring Safety and Compliance

– **Compliance with Regulations:** Adheres to international security standards, helping logistics and transportation companies meet regulatory requirements and avoid costly penalties.

– **Safety First:** Engineered with safety in mind, featuring low radiation emission levels to protect operators and ensuring that all scanned goods are safe for further handling and transportation.

Versatile Application

– **Across Industries:** Ideal for a wide range of industries, including manufacturing, shipping, and warehousing, providing a versatile solution that adapts to various security needs.

– **Global Connectivity:** Supports seamless integration into existing logistics infrastructures, offering remote operation capabilities and data analysis for enhanced security management on a global scale.

The Lostic X-Ray Cargo Scanner represents a significant advancement in logistics security, combining unparalleled detection accuracy with operational efficiency. By integrating this powerful tool into your security protocol, you ensure that your logistics operations are not only compliant with global standards but also optimized for peak performance, making it an essential asset for modern logistics and transportation networks.

Key Features:

1. **Precision Imaging:** The Lostic X-Ray Cargo Scanner provides unparalleled clarity in imaging, allowing for comprehensive inspection of cargo contents.

2. **Advanced Security Features:** With advanced security features, this scanner is equipped to detect and identify potential threats, offering a robust defense against unauthorized or hazardous materials.

3. **Efficient Cargo Management:** Streamline your logistics operations by investing in the Lostic X-Ray Cargo Scanner. Its rapid and precise screening capabilities contribute to seamless cargo management processes.

4. **Customized Security Solutions:** Tailor your security protocols with the flexibility offered by the Lostic X-Ray Cargo Scanner. Its adaptable features make it a versatile and reliable choice for various logistics environments.

Invest in the future of logistics security with the Lostic X-Ray Cargo Scanner. Ensure the safety and integrity of your shipments by incorporating this advanced technology into your operations. Trust Lostic for cutting-edge solutions that redefine logistics security standards.”

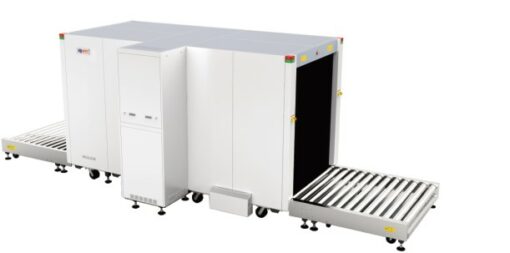

VX150180 is multi-energy x ray security inspection system for cargo scanning. It’s powerful to deal with big size luggage at 150cm width, and 180cm height. It provides high resolution and ultra–clear images for easy object identification with the latest technology of computer control and image processing.

VX150180 can distinguish organic and inorganic materials by atomic composition of the material. VX150180 can distinguish explosives/drugs and realize Threat Image Project Function through adding different option. The operator can easily identify materials with the following coloring scheme:

●Organic material–orange

●Inorganic material–blue

●Mixed material–green

●High density material–black

◆ General Specification :

Tunnel Size: 1500mm*1800mm

Conveyor Speed: 0.22m/s

Conveyor height : 350mm

Conveyor Max Load:2000kg

X ray Dose per inspection <2.8μSv

Wire Resolution:38AWG Guarantee, 40 AWG typical

Spatial resolution Level: dia1.3mm,Vertical: dia1.3mm

Penetration: 32 mm steel guarantee,34mm steel typical

Penetration Resolution :32AWG guarantee, 34AWG typical

Film Safety :Guarantee ASA/ISO1600 Film

X-ray Leakage: <0.1μSv/h (at a distance of 5cm From external housing)

Conveyor running direction: bi-direction

Throughput : Typically 720 bags per hour

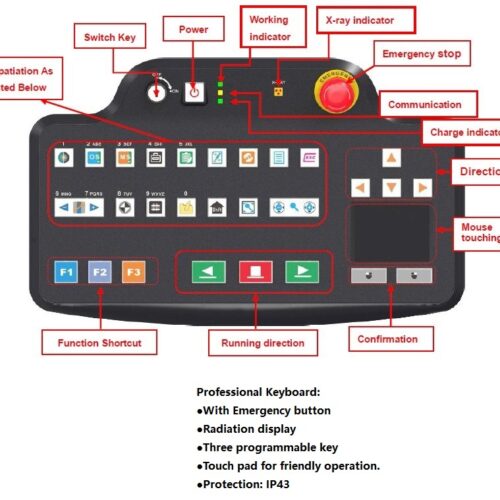

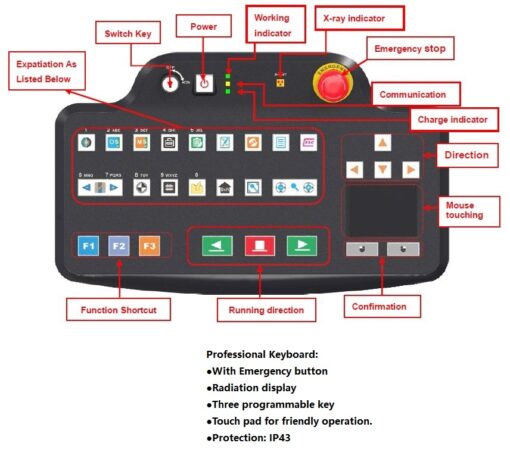

Operation console: Two monitors 17inch

Mechanical construction: steel construction with steel panels, mounted on roller castors

Standard color: White

Extension roller for entrance and exit: 1.5m(optional)

◆ Image System :

Technical Principle: Dual-energy X-ray Imaging;

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic)

Monitor: High Resolution Color, LCD Accord, 17inch

Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 65536

Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low

penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.

Image Recall: All preceding images recallable, retrieval.

Help detect Explosives & Narcotics: Explosives & narcotics alarm and highlight according to atomic number7.8.9 signature

High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of

threats and contrabands

Threat Image Projection: Inserting fictional, but realistic images of threat items into

baggage during screening operation, for maintenance of vigilance, as well as training and

assessment of image identification capability

Image Archive: Up to 50,000 images stored automatically, enable transferring to USB disk, and

converting to XF、PNG、BMP、JPEG、TIFF、GIF formats

Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on

timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log,

system standby etc.

Network Applications: Multiple remote applications available based on Ethernet LAN and

windows platform, such as image centralized storage and identify, recheck workstation, and

network TIP, etc ( Optional) .

Images process: 24bit real time processing ,4colors analysis, Images displayed marked date and

ID NO ,Count the number of bags ,Memory gray level:65536

◆ Operating Environment:

Operation temperature/Humidity: 0℃ to +40℃/10%-95%(non-condensing)

Storage Temperature/Humidity: -20℃to 60℃/ 5%-95%(non-condensing)

Operation Power: 220VAC(+10%～-15%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

Power Consumption: 2.0KW (max)

Noise: <58db

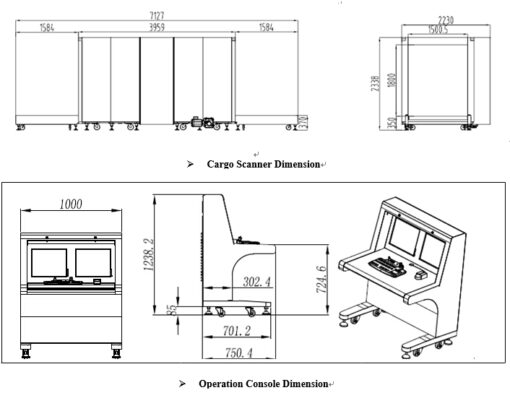

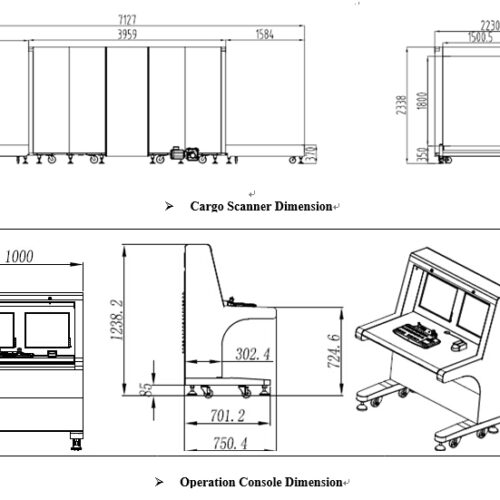

Dimensions (L×W×H) :2127mm*2230mm *2338mm

Weight: 3500kgs

◆ Computer Character:

CASE: IPC7132

Power: 250W/ATX

Main board: AIMB 501G2

CPU: G1610 2.6G

Storage: 2GB 1600MHz DDR3 Innodisk

Hard Disk: SEAGATE 500G 3.5”

◆ X-ray Generator:

Anode Voltage: 160kv adjustment

Anode power: 1.2mA adjustment

Generate angle: 80 degree downward

Brand: SPELLMAN

Generate direct: from top to bottom

Cooling / Duty Cycle: Oil Cooling /100%

◆ Other Characters:

Detect PCB board: UK brand Sensortech

Extension Rollers: customize size length

Support card reader operator access

CD DVR/RW unit: Optional

Computer system: XP system

Monitor: 17 inch DELL two monitors
