Averguard x ray baggage scanner

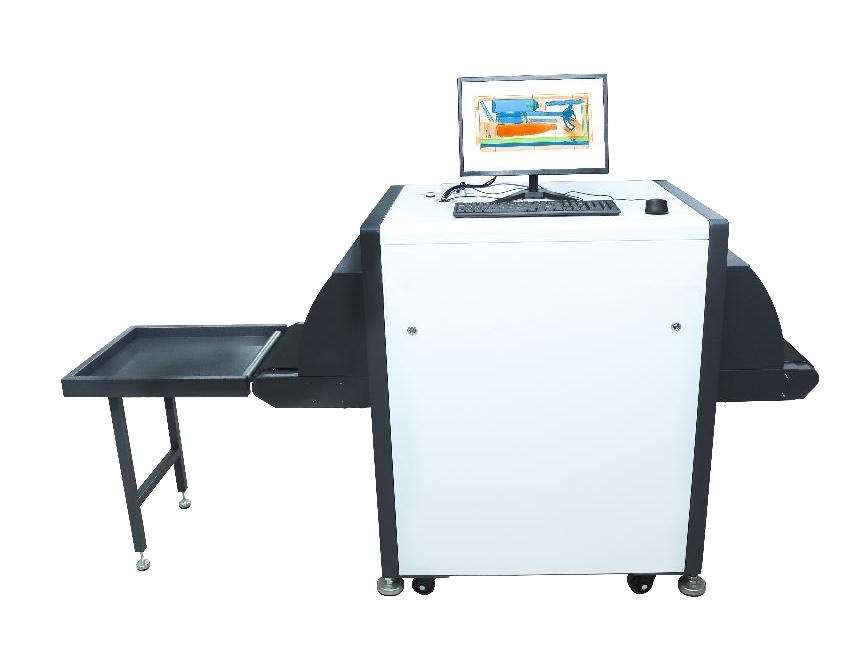

X-ray Baggage Scanner 5030C is a high-performance X-ray security inspection system designed for a wide range of security screening applications in locations such as airports, subway stations, train stations, government facilities, and major event entrances. With its exceptional image processing capabilities and powerful penetration performance, this equipment ensures efficient identification and analysis of items concealed within luggage and packages.
Key Features & Functions:

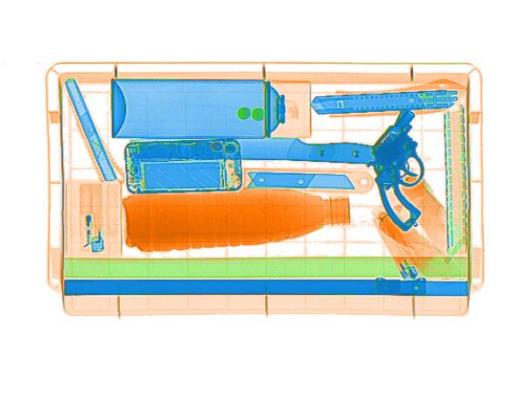

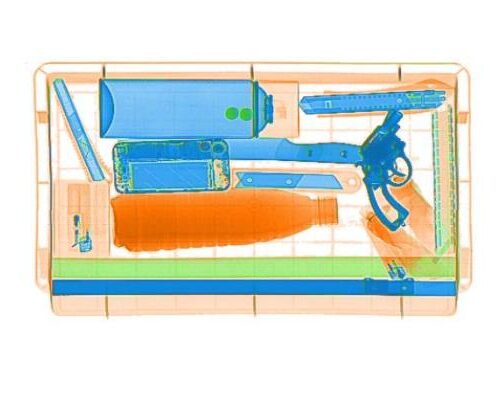

- Image Display Processing: Offers a variety of image adjustment options including color, grayscale, inverse, composite, high penetration, low penetration, enhancement, attenuation, local enhancement, edge enhancement/reduction, brightening, darkening, and differentiation between organic and inorganic materials. Also supports zooming with the mouse wheel for detailed analysis.
- System Functions: Features intelligent roller (optional), high-density, and liquid alarm functions (both optional), along with boot self-check, automatic calibration, multi-level user management, image management, TIP management, curve diagnostics, and system device information access, ensuring ease of operation and system security.
- One-Key Shutdown: Designed for user convenience, the system can be safely shut down by simply rotating a key.
- High-Performance Hardware: Equipped with an embedded industrial control motherboard and a 500GB hard drive capable of storing over 2.5 million images, supporting storage and retrieval of images in multiple formats for efficient data management and review.
- Eco-Friendly & Energy-Efficient: Utilizes a DC24V safe voltage, silent linear electric roller with speed adjustable from 0 to 0.25m/s, paired with a high-efficiency X-ray generator (140KV tube voltage, 0.3mA tube current, sealed oil cooling + external air cooling), ensuring low energy consumption and long service life.
- Safety Protection: Fitted with four layers of lead curtains at the entrance and exit to effectively prevent radiation leakage, while the item tray includes a design that prevents item drops and has anti-pinch safety features, safeguarding the well-being of operators and the public.
Technical Specifications:

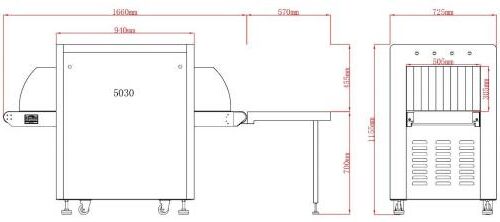

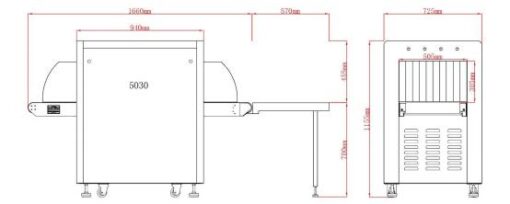

- Channel Dimensions: 50cm (W) x 30cm (H), suitable for various common luggage sizes.
- Conveyor Belt Speed: 0.23m/s, balancing inspection efficiency with image capture quality.
- Penetration Power: Capable of penetrating up to 34mm steel plates, ensuring visibility through thick luggage.
- Resolution: Line resolution is 0.0787mm metal wire, penetration resolution is 0.127mm metal wire, and spatial resolution is 1.0mm, which can accurately identify items as small as thin wires.
- Radiation Control: Single inspection dose less than 1μGy, with a leak radiation dose rate of less than 1μSv/h (at 10cm from the outer surface of the device), strictly adhering to the new national standard GB15208.1-2018, ensuring radiation safety.
X-ray Baggage Scanne 5030C Specifications
Accessories Configuration
Security Inspection Machine 5030C Specifications
Accessories Configuration
|
Frame |
Laser cutting processing, powder coating, anti-corrosion and rust-proof; |
| Receiving Rack |
Standard receiving rack at the exit, to prevent items from falling and getting damaged, anti-pinch design at the connection for safe and reliable operation. |
|
Motor |
DC24V safe voltage, silent straight-line electric drum motor. Speed adjustable from 0-0.25m/s. |
| Main Unit |
Embedded industrial control motherboard, 500G hard drive. Capable of storing up to 2.5 million images. |
|
Monitor |
19-inch LCD monitor, VGA interface. Optional operation desk available |
| X-ray Detector |
L-shaped detection array, high-definition digital detection board. |
|
X-ray Generator |
Tube voltage 140KV, tube current 0.3mA (adjustable); sealed oil cooling + external air cooling. |
| Electrical Circuitry |
PCB main control circuit, clear identification, Meanwell power supply; |
|
Lead Curtain |
2 layers of lead curtain at the front and back, staggered installation for efficient radiation protection. |
Device Functions
|
Image Display Processing |
Color, grayscale, inverse color, mixed, high penetration, low penetration, enhancement, reduction, local enhancement, edge+, edge-, brighten, darken, organic, inorganic, magnification with mouse middle button; |
|
System Functions |
Intelligent drum (optional), high-density alarm (optional), liquid alarm (optional), self-check upon power-up, automatic calibration, multi-level user management, image management, TIP management, curve diagnosis, system device information, various formats of image storage, image query. |
| One-key Power-off |
To power off, simply rotate the key for a safe shutdown.. |
|
Self-check upon Power-up |
After powering on, the system automatically checks if all accessories are functioning properly. |
| Image Storage |
Supports various formats of image storage, can be easily transferred to other computers for review; image storage capacity is greater than 2.5 million images. |
Performance Indicators
|
Tunnel Size |
50cm (width) * 30cm (height) |
| Conveyor Speed |
0.23m/s |
|
Max. Load Cap. |
100 kg |
| Penetrating |
34mm steel plate |
|
Line Resolution |
Φ0.0787mm metal wire |
| Penetrating Resolution |
Φ0.127mm metal wire |
|
Spatial Resolution |
Φ1.0mm |
| Single Check Dose |
Less than 1μGy |
|
Leakage Radiation Dose Rate |
Less than 1μSv/h (10cm away from the outer surface of the device), in compliance with the new national standard GB15208.1-2018.. |
