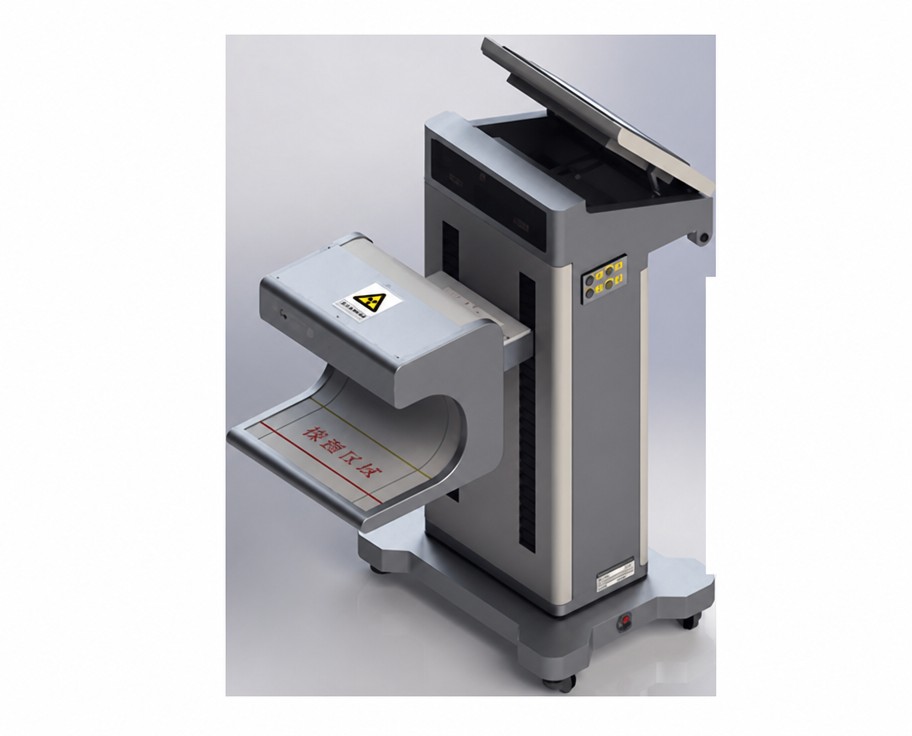

ABX-5010-LS1 Limb X-Ray Screening System
ABX-5010-LS1 is a compact limb X-ray screening system for authorized, non-destructive inspection of bandages, casts and limb areas. Its movable detection arm, low-dose imaging and compact footprint support accessible screening workflows in commercial and public-service environments.
Key features
- Movable detection arm with a rotation range of at least 180 degrees.
- Effective inspection range of 250 mm and maximum inspection width of 180 mm.
- Less than 0.25 uSv per scan and less than 4 seconds scan time.
- AWG38 wire detectability and adjustable continuous magnification.
- Image enhancement, black-and-white imaging, selection, zoom and 50-image playback.
- Minimum storage capacity of 100,000 images.
- Compact design with 300 W power consumption.
Technical specifications
| Dimensions | 1100 x 740 x 1330 mm |
|---|---|
| Weight | 190 kg |
| Effective inspection range | 250 mm |
| Maximum inspection width | 180 mm |
| Single inspection dose | <0.25 uSv |
| Single scan time | <4 seconds |
| Detection arm rotation | 180 degrees or more |
| Wire detectability | AWG38 |
| Sound pressure level | <65 dB |
| Power consumption | 300 W |
| Image storage | Minimum 100,000 images |
| Warranty | 1 year |
Applications
Suitable for authorized accessibility-focused screening, public facilities, commercial sites, transport environments and specialized inspection workflows.
