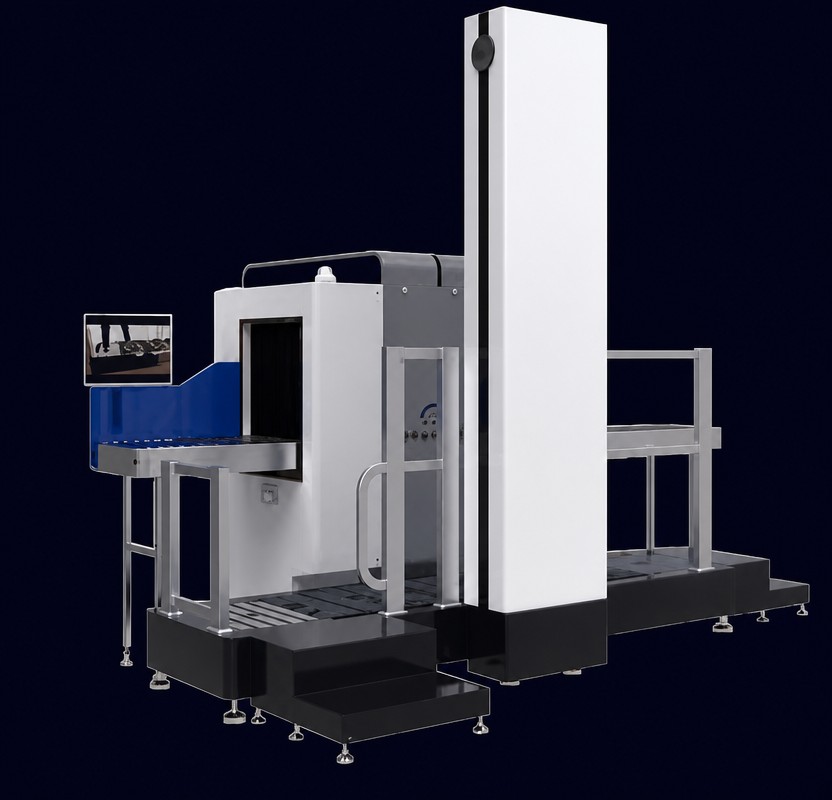

ABX-5010-DC2 Dual-Channel Full-Body and Baggage X-Ray Screening System
ABX-5010-DC2 is a dual-channel X-ray screening system designed to inspect a person and carried baggage in one continuous workflow. Its low-dose transmission imaging, high throughput, and clear image presentation support commercial security screening in transport facilities, public venues, industrial sites, and other authorized inspection environments.
Key features
- Dual-channel inspection for full-body and baggage screening.
- Low-dose transmission screening: less than 0.20 μSv per full-body scan.
- Single scan time of up to 3 seconds and throughput of at least 1,000 persons per hour.
- Open-type continuous cyclic inspection with a circular conveyor design.
- Wire detectability: AWG38 for full-body imaging and AWG40 for baggage imaging.
- Real-time capture, black-and-white and color overlay, zoom, enhancement, filters, pseudo color, brightness and contrast adjustment.
- Image retrieval by operator ID or capture time and storage for up to 1,000,000 pictures.
Technical specifications
| Dimensions | 2600 × 2100 × 2600 mm |
|---|---|
| Weight | 1200 kg |
| Baggage tunnel | 650 × 500 mm |
| Scanning height | 2 m |
| Full-body dose | <0.20 μSv |
| Baggage dose | <3 μSv |
| Spatial resolution | 1.3 mm full body; 1.0 mm baggage |
| Throughput | ≥1000 persons per hour |
| Conveyor speed | 0.17 m/s |
| Display | 17-inch and 24-inch LCD, 1920 × 1200 |
| Power | 1200 W; 180–240 V AC; 50 ± 3 Hz |
| Warranty | 1 year |
Applications
Suitable for authorized screening at transport facilities, customs-related commercial workflows, public venues, industrial sites, and large events.
