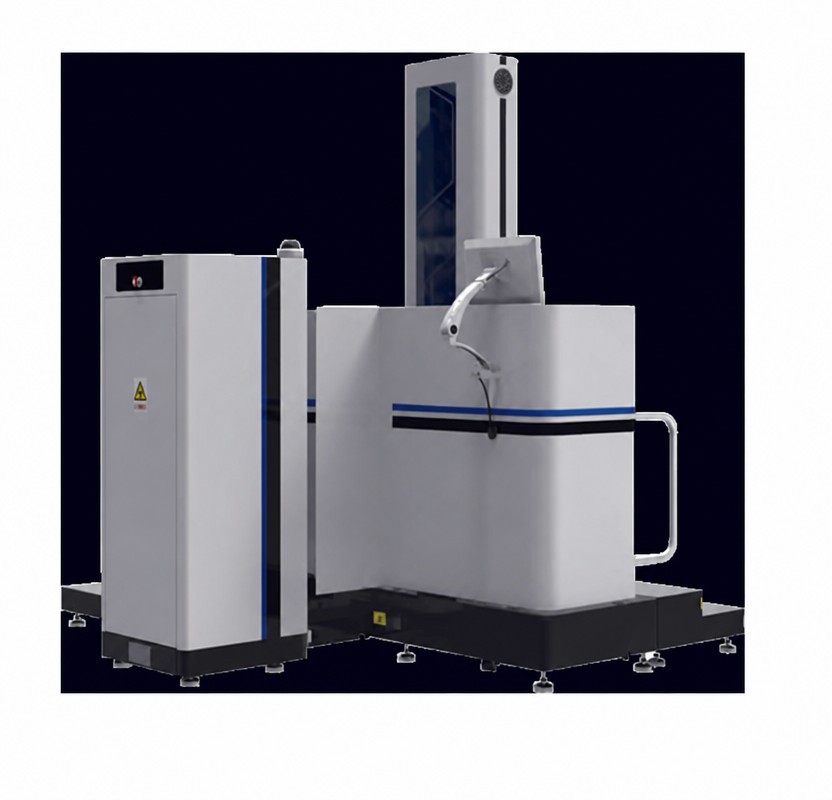

ABX-5010-SC3A Full-Body X-Ray Screening System
ABX-5010-SC3A is a compact full-body X-ray screening system with low-dose transmission imaging, fast continuous operation, and an easy-install three-joint construction. It is designed for authorized commercial, public-venue, transport, and industrial inspection environments.
Key features
- Full-body transmission screening with less than 0.20 μSv per scan.
- Less than 3 seconds per scan and throughput of at least 1,200 persons per hour.
- Three-joint construction for faster installation and alignment.
- AWG40 wire detectability and 1.0 mm spatial resolution.
- Real-time image capture with black-and-white, color overlay, zoom, enhancement, filters and contrast control.
- Storage for up to 1,000,000 images with USB transfer support.
Technical specifications
| Dimensions | 2610 × 2300 × 2600 mm |
|---|---|
| Weight | 1000 kg |
| Scanning height | 2.1 m |
| Single inspection dose | <0.2 μSv |
| X-ray leakage | <0.17 μSv/h at 50 cm |
| Wire detectability | AWG40 |
| Spatial resolution | 1.0 mm |
| Single scan time | <4 seconds |
| Throughput | ≥1200 persons per hour |
| Conveyor speed | 0.17 m/s |
| Power | 800 W; 180–240 V AC; 50 ± 3 Hz |
| Warranty | 1 year |
Applications
Suitable for authorized screening at passenger facilities, public venues, commercial buildings, industrial sites, and transport environments.
