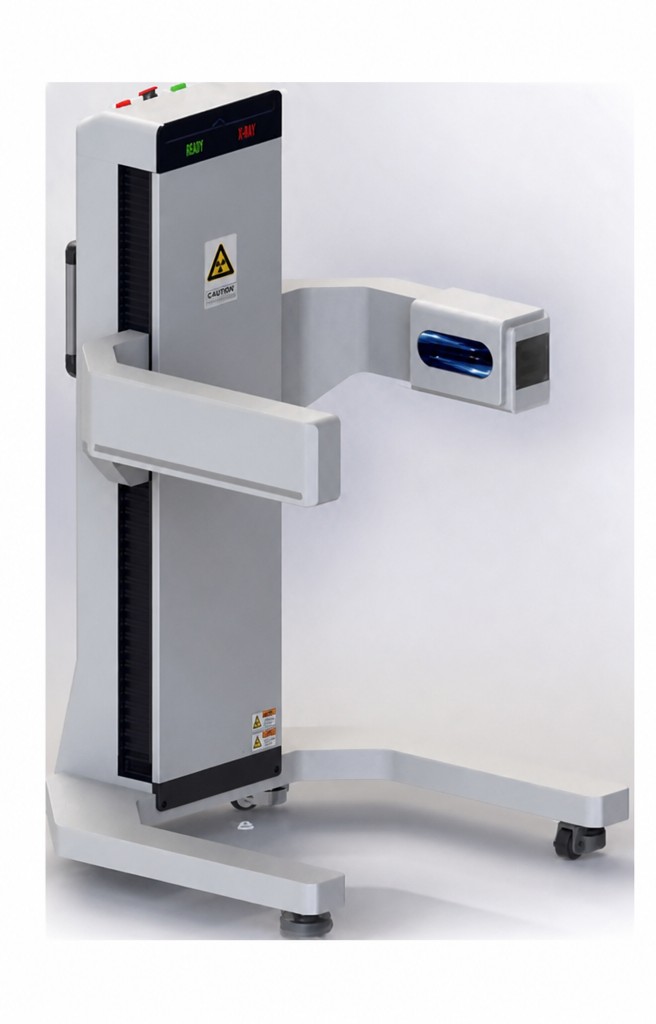

ABX-5010-AB Mobile Torso X-Ray Screening System
ABX-5010-AB is a compact mobile torso X-ray screening system designed for authorized, non-intrusive inspection in commercial and public-service environments. Its low-dose transmission imaging, small footprint, and plug-in operation support flexible deployment where space and mobility are important.
Key features
- Mobile torso screening system with no fixed installation requirement.
- Effective scanning range from 0.75 to 1.25 m above the ground.
- Low-dose inspection below 3 uSv per scan.
- AWG40 wire detectability and 1.0 mm spatial resolution.
- Mechanical inspection arm with vertical movement for flexible torso-area positioning.
- Image enhancement, black-and-white imaging, selection, adjustable zoom and continuous zoom-in.
- 50 checked-image playback and storage for up to 1,000,000 images.
Technical specifications
| Dimensions | 1120 x 1000 x 1570 mm |
|---|---|
| Weight | 150 kg |
| Effective scanning area | 0.75-1.25 m from ground |
| Generator anode voltage | 120 kV |
| Single inspection dose | <3 uSv |
| Wire detectability | AWG40 |
| Spatial resolution | 1.0 mm |
| Single scan time | 10-15 seconds |
| Sound pressure level | <54 dB |
| Power consumption | 700 W |
| Image storage | 1,000,000 pictures |
| Warranty | 1 year |
Applications
Suitable for authorized screening at public venues, transport facilities, commercial buildings, industrial sites and other locations requiring flexible torso-area inspection.
