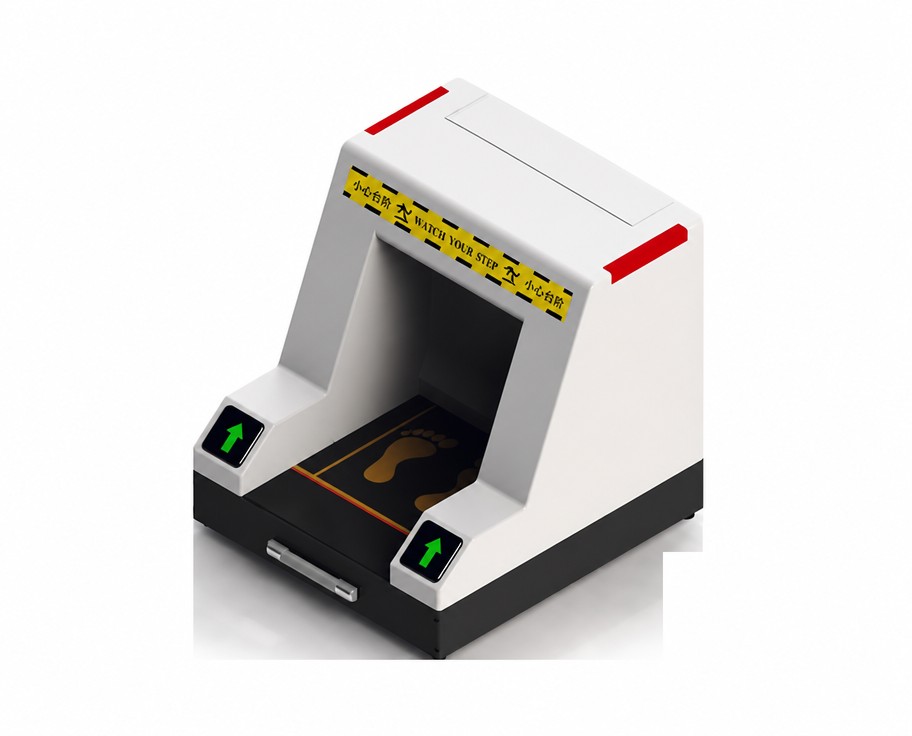

ABX-5010-FS1 Foot and Shoe X-Ray Screening System
ABX-5010-FS1 is a compact foot and shoe X-ray screening system that supports inspection from the ankle to the shoe sole without requiring shoes to be removed. Its fast scanning, clear imaging and small footprint make it suitable for authorized commercial and public inspection environments.
Key features
- Foot-area screening without shoe removal.
- Single scan time below 5 seconds.
- Effective detection range of 340 x 300 mm.
- Low-dose inspection of up to 0.5 uSv per scan.
- AWG38 wire resolution and 1 mm spatial resolution.
- Continuous 2-16x zoom, 50-image playback and automatic storage for at least 100,000 images.
- 15-inch square screen plus 12.3-inch rectangular screen.
Technical specifications
| Dimensions | 780 x 650 x 1275 mm |
|---|---|
| Weight | 76 kg |
| Effective detection range | 340 x 300 mm |
| Single inspection dose | 0.5 uSv or less |
| Single scan time | <5 seconds |
| Display | 15-inch square screen + 12.3-inch rectangular screen |
| Spatial resolution | 1 mm |
| Wire resolution | AWG38 |
| Power consumption | 200 W |
| Image storage | 500 GB; at least 100,000 images |
| Warranty | 1 year |
Applications
Suitable for authorized screening at public venues, transport facilities, commercial buildings, event locations and other sites requiring compact foot-area inspection.
