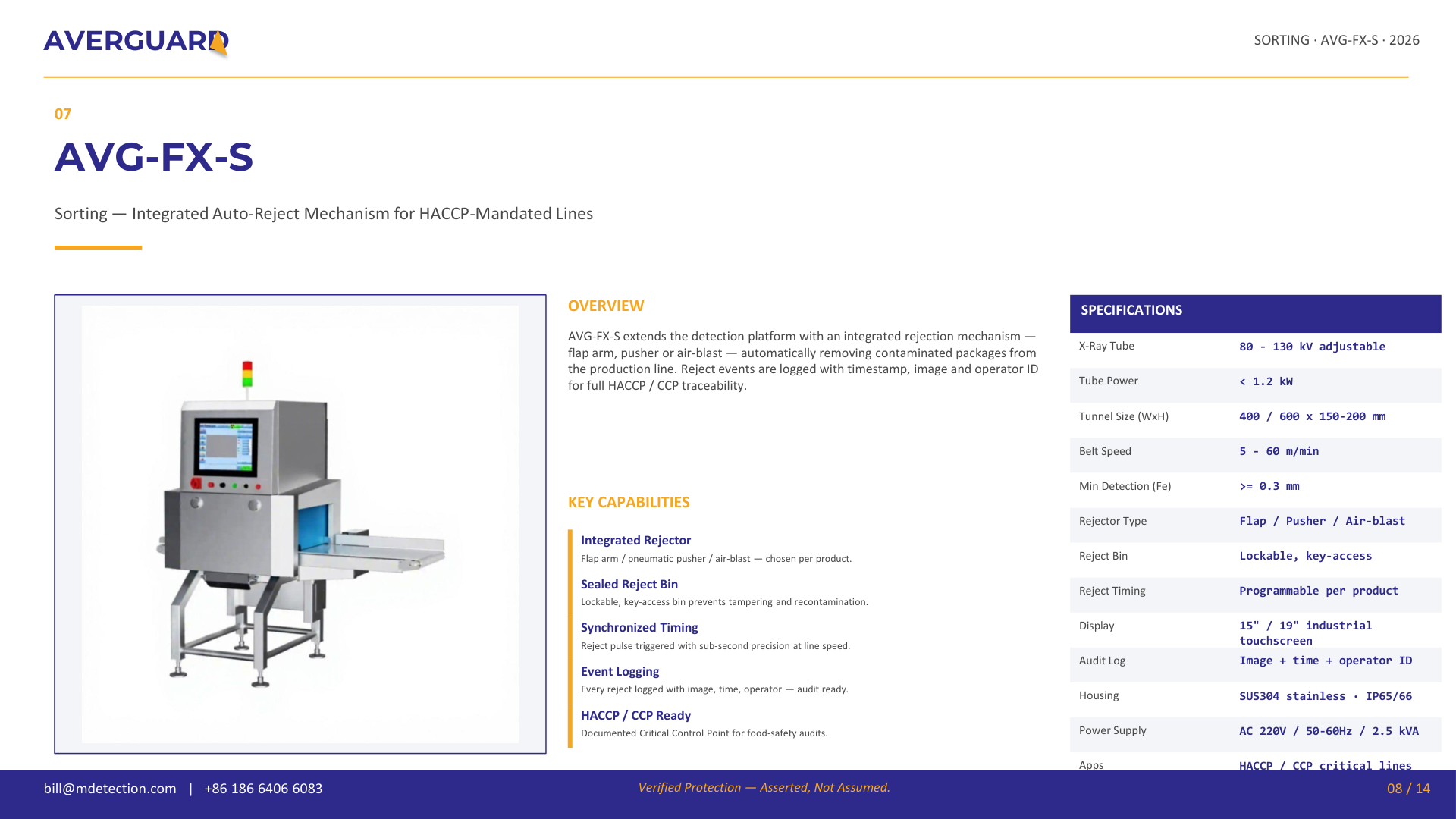

Overview
The AVG-FX-S extends the detection platform with an integrated rejection mechanism — flap arm, pusher or air-blast — automatically removing contaminated packages from the production line. Reject events are logged with timestamp, image and operator ID for full HACCP / CCP traceability.
Key Capabilities
- Integrated Rejector: Flap arm, pneumatic pusher or air-blast — chosen per product and line configuration.
- Sealed Reject Bin: Lockable, key-access bin prevents tampering and recontamination.
- Synchronized Timing: Reject pulse triggered with sub-second precision at line speed.
- Event Logging: Every reject logged with image, timestamp and operator ID — audit ready.
- HACCP / CCP Ready: Documented Critical Control Point for food-safety audits.
Technical Specifications
| X-Ray Tube | 80 – 130 kV adjustable |
| Tube Power | < 1.2 kW |
| Tunnel Size (W × H) | 400 / 600 × 150–200 mm |
| Belt Speed | 5 – 60 m/min |
| Min Detection (Fe) | ≥ 0.3 mm |
| Rejector Type | Flap / Pusher / Air-blast |
| Reject Bin | Lockable, key-access |
| Display | 15″ / 19″ industrial touchscreen |
| Audit Log | Image + time + operator ID |
| Housing | SUS304 stainless · IP65/66 |
| Power Supply | AC 220V / 50–60Hz / 2.5 kVA |
Applications
- HACCP-mandated critical control point lines
- CCP food-safety audit environments
- High-speed production lines requiring automatic rejection
- Packaged food, confectionery and processed goods inspection
