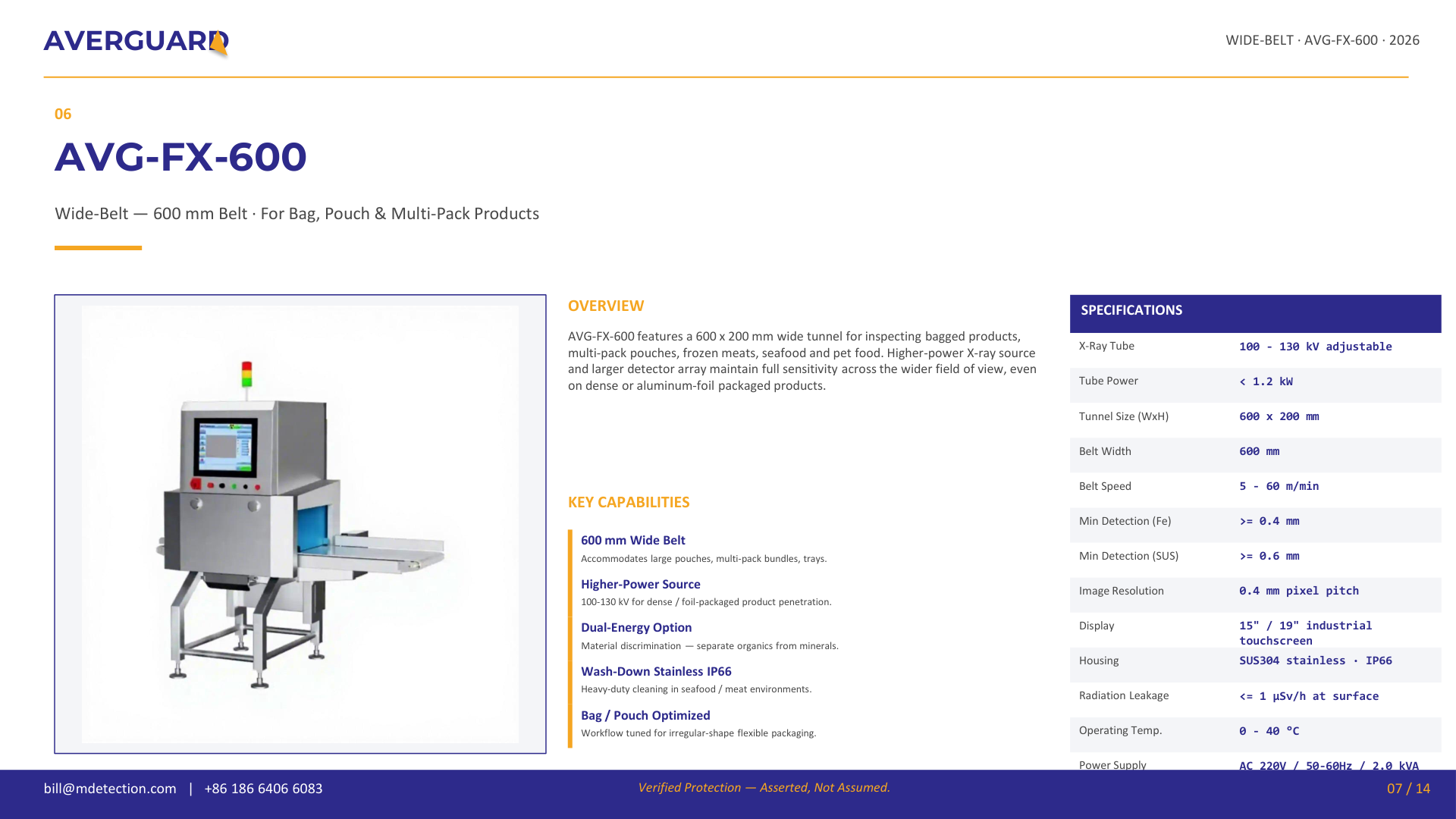

Overview
The AVG-FX-600 features a 600 × 200 mm wide inspection tunnel for bagged products, multi-pack pouches, frozen meats, seafood and pet food. A higher-power X-ray source and larger detector array maintain full sensitivity across the wider field of view, even on dense or aluminium-foil packaged products.
Key Capabilities
- 600 mm Wide Belt: Accommodates large pouches, multi-pack bundles and trays.
- Higher-Power Source: 100–130 kV adjustable tube for dense and foil-packaged product penetration.
- Dual-Energy Option: Material discrimination separates organics from minerals.
- Washdown Stainless IP66: Heavy-duty cleaning in seafood and meat processing environments.
- Bag / Pouch Optimized: Workflow tuned for irregular-shape flexible packaging.
Technical Specifications
| X-Ray Tube | 100 – 130 kV adjustable |
| Tube Power | < 1.2 kW |
| Tunnel Size (W × H) | 600 × 200 mm |
| Belt Width | 600 mm |
| Belt Speed | 5 – 60 m/min |
| Min Detection (Fe) | ≥ 0.4 mm |
| Min Detection (SUS) | ≥ 0.6 mm |
| Image Resolution | 0.4 mm pixel pitch |
| Display | 15″ / 19″ industrial touchscreen |
| Housing | SUS304 stainless · IP66 |
| Power Supply | AC 220V / 50–60Hz / 2.0 kVA |
Applications
- Bagged products and pouches
- Frozen meat and seafood inspection
- Pet food quality control
- Multi-pack and tray-based production lines
