Overview

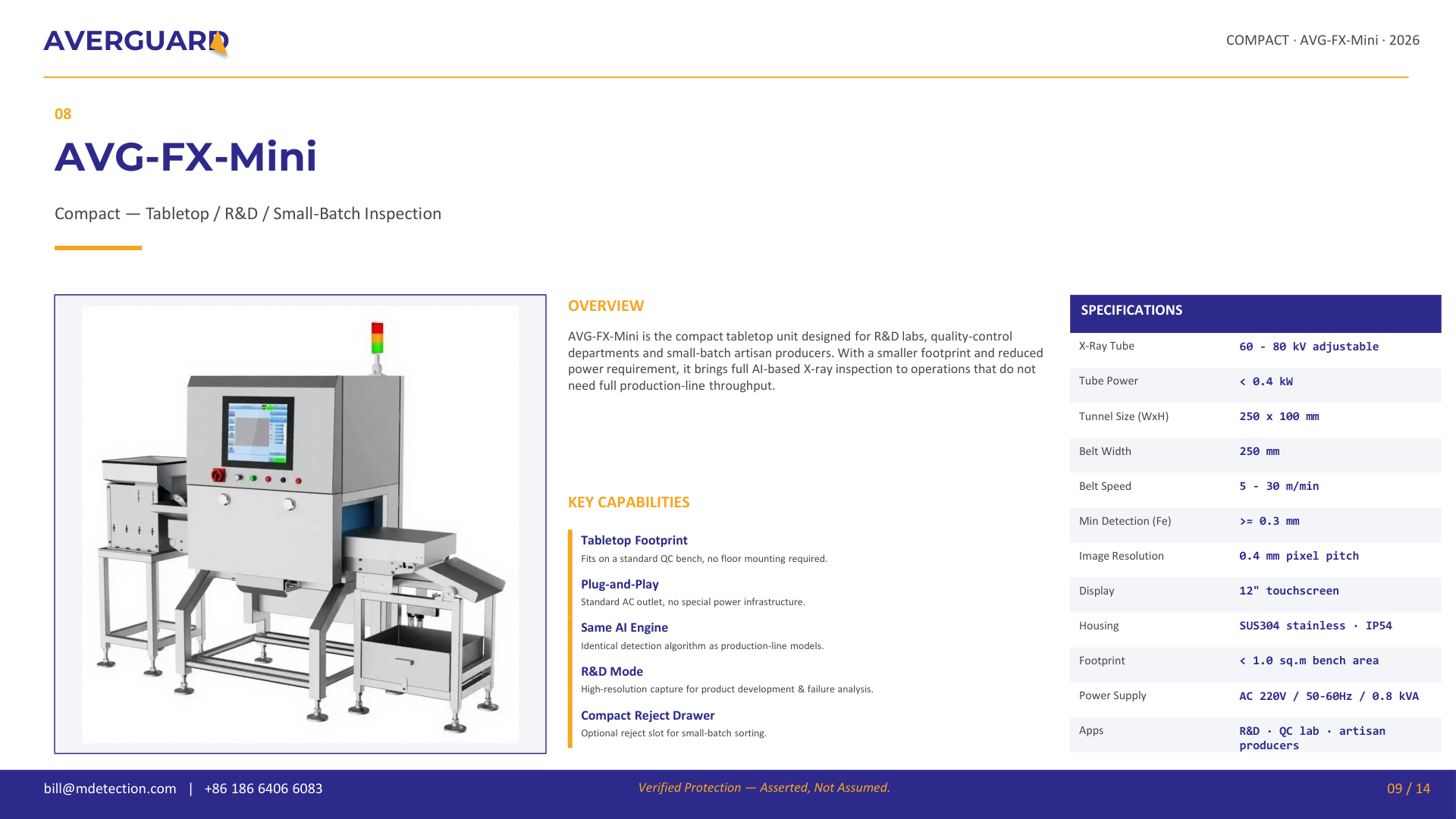

The AVG-FX-Mini is a compact tabletop unit designed for R&D labs, quality-control departments and small-batch artisan producers. With a smaller footprint and reduced power requirement, it brings full AI-based X-ray inspection to operations that do not need full production-line throughput.
Key Capabilities
- Tabletop Footprint: Fits on a standard QC bench with under 1.0 square metre bench area — no floor mounting required.
- Plug-and-Play: Standard AC outlet operation, no special power infrastructure needed.
- Same AI Engine: Identical detection algorithm as production-line models for consistent results.
- R&D Mode: High-resolution capture for product development and failure analysis.
- Compact Reject Drawer: Optional reject slot for small-batch sorting.
Technical Specifications
| X-Ray Tube | 60 – 80 kV adjustable |
| Tube Power | < 0.4 kW |
| Tunnel Size (W × H) | 250 × 100 mm |
| Belt Width | 250 mm |
| Belt Speed | 5 – 30 m/min |
| Min Detection (Fe) | ≥ 0.3 mm |
| Image Resolution | 0.4 mm pixel pitch |
| Display | 12″ touchscreen |
| Housing | SUS304 stainless · IP54 |
| Footprint | < 1.0 sq.m bench area |
| Power Supply | AC 220V / 50–60Hz / 0.8 kVA |
Applications
- R&D laboratory testing
- QC quality-control departments
- Small-batch artisan producers
- Product development and failure analysis
