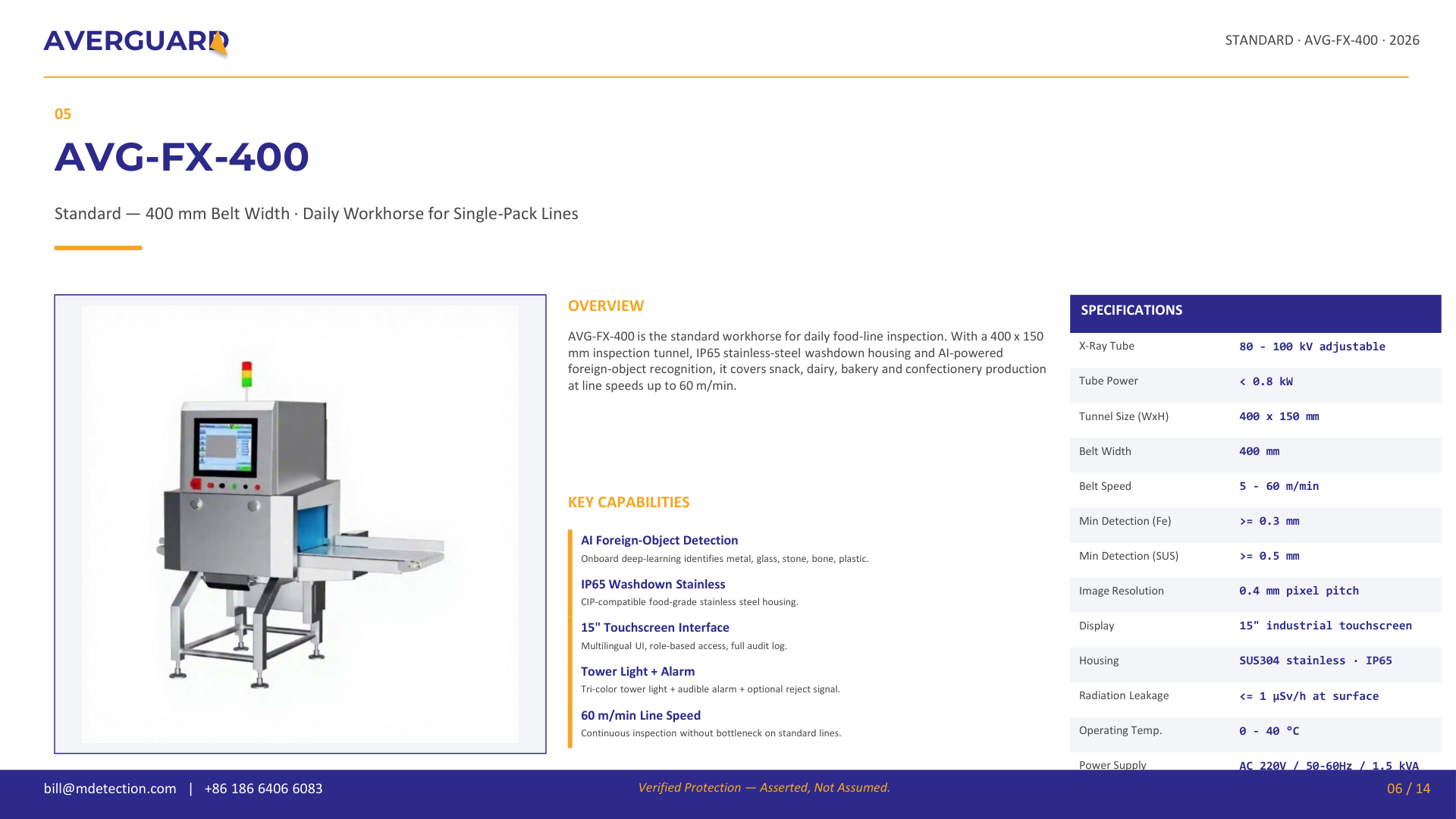

Overview
The AVG-FX-400 is a standard workhorse for daily food-line inspection, designed for single-pack, boxed and daily production environments. With a 400 × 150 mm inspection tunnel and IP65 stainless-steel housing, it integrates AI-powered foreign-object recognition suitable for snacks, dairy, bakery and confectionery production at speeds up to 60 m/min.
Key Capabilities
- AI Foreign-Object Detection: Onboard deep-learning identifies metal, glass, stone, bone and hard plastic contaminants.
- IP65 Washdown Stainless: SUS304 food-grade stainless steel housing compatible with CIP cleaning protocols.
- 15-inch Industrial Touchscreen: Multilingual UI with role-based access and full audit log.
- Tower Light + Alarm: Tri-color status indicator with audible alarm and optional reject signal output.
- 60 m/min Line Speed: Continuous inspection without production bottlenecks.
Technical Specifications
| X-Ray Tube | 80 – 100 kV adjustable |
| Tube Power | < 0.8 kW |
| Tunnel Size (W × H) | 400 × 150 mm |
| Belt Width | 400 mm |
| Belt Speed | 5 – 60 m/min |
| Min Detection (Fe) | ≥ 0.3 mm |
| Min Detection (SUS) | ≥ 0.5 mm |
| Image Resolution | 0.4 mm pixel pitch |
| Display | 15″ industrial touchscreen |
| Housing | SUS304 stainless · IP65 |
| Power Supply | AC 220V / 50–60Hz / 1.5 kVA |
Applications
- Snacks and confectionery inspection
- Dairy product quality control
- Bakery and packaged food lines
- Single-pack and boxed product inspection
