X-ray Baggage Scanner 6550C
The X-ray Baggage Scanner 6550C is a high-performance X-ray security screening device tailored for public areas, transportation hubs, and various security checkpoints. It integrates advanced image processing technology with a user-friendly interface to ensure efficient and secure inspection processes.
Key Features:
- Advanced Imaging Technology: Equipped with an L-shaped high-definition digital detection panel, it offers multiple image display modes including color, grayscale, enhancement, reduction, organic/inorganic material distinction, and more. The mouse wheel zoom function facilitates detailed examination.
- Powerful Penetration & Resolution: With the capability to penetrate 34mm steel plates, it boasts wire resolution of 0.0787mm, Penetrating Resolution of 0.127mm, and spatial resolution of 1.0mm, ensuring even tiny foreign objects are vividly revealed.
- Smart System Functions: Supporting optional smart roller, high-density, and liquid alarms, it enhances inspection efficiency. Self-check upon startup and automatic calibration guarantee optimal performance before each use. Multi-level user access control and image database management ensure information security and efficient operation.
- User-Friendly Design: Featuring a one-key shutdown mechanism that only requires turning a key for safe power-off. A quiet linear DC24V electric roller with adjustable speed from 0-0.25m/s caters to diverse inspection needs. A 19-inch LCD monitor paired with a dedicated console ensures intuitive operation.
- Safety and Environmental Protection: Compliant with the latest national standard GB15208.1-2018, its radiation leakage dose rate is less than 1μSv/h, well below safety limits. Four-layer lead curtains at the entrance and exit effectively prevent radiation leakage. Constructed with environmentally friendly materials and processes, the laser-cut frame is powder-coated for rust resistance.
- Efficient Storage & Management: Supporting storage of images in multiple formats with a capacity exceeding 2.5 million images, inspections can be easily transferred and reviewed on other computers, fulfilling long-term usage and data analysis requirements.
The X-ray Baggage Scanner 6550C Security Scanner, with its exceptional performance, intelligent operation, and high safety standards, stands as a pivotal high-end inspection tool in modern security realms, contributing significantly to public safety.
Security Inspection Machine 6550C Specifications
Accessories Configuration
|
Frame |
Laser cutting processing, powder coating, anti-corrosion and rust-proof; |
| Receiving Rack |
Standard receiving rack at the exit, to prevent items from falling and getting damaged, anti-pinch design at the connection for safe and reliable operation. |
|
Motor |
DC24V safe voltage, silent straight-line electric drum motor. Speed adjustable from 0-0.25m/s. |
| Main Unit |
Embedded industrial control host, 500G hard drive. Capable of storing up to 1.5 million images. |
|
Monitor |
19-inch LCD monitor, VGA interface. Comes with a standard separate control desk. |
| X-ray Detector |
L-shaped detection array, high-definition digital detection board. |
|
X-ray Generator |
Tube voltage 140KV, tube current 0.3mA (adjustable); sealed oil cooling + external air cooling. |
| Electrical Circuitry |
PCB main control circuit, clear identification, Meanwell power supply; |
|
Lead Curtain |
2 layers of lead curtain at the front and back, staggered installation for efficient radiation protection. |
Device Functions
|

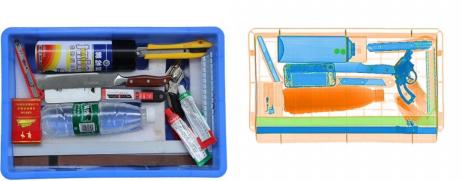

Image Display Processing |
Color, grayscale, inverse color, mixed, high penetration, low penetration, enhancement, reduction, local enhancement, edge+, edge-, brighten, darken, organic, inorganic, magnification with mouse middle button; |
|
System Functions |
Intelligent drum (optional), high-density alarm (optional), liquid alarm (optional), self-check upon power-up, automatic calibration, multi-level user management, image management, TIP management, curve diagnosis, system device information, various formats of image storage, image query. |
|
One-key Power-off |
To power off, simply rotate the key for a safe shutdown.. |
| Self-check upon Power-up |
After powering on, the system automatically checks if all accessories are functioning properly. |
|
Image Storage |
Supports various formats of image storage, can be easily transferred to other computers for review; image storage capacity is greater than 2.5 million images. |
Performance Indicators
|

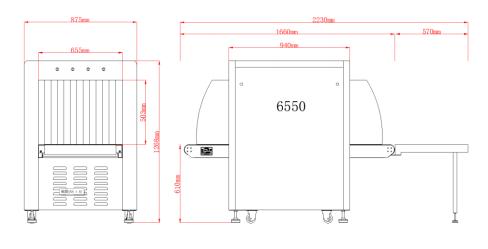

Tunnel Size |
65cm (W) * 50cm (H) |
| Conveyor Speed |
0.23m/s |
|
Max. Load Cap. |
100 kg |
| Penetrating |
34mm steel plate |
|
Line Resolution |
Φ0.0787mm metal wire |
|
Penetrating Resolution |
Φ0.127mm metal wire |
|
Spatial Resolution |
Φ1.0mm |
|
Single Check Dose |
Less than 1μGy |
|
Leakage Radiation Dose Rate |
Less than 1μSv/h (10cm away from the outer surface of the device), in compliance with the new national standard GB15208.1-2018.. |
