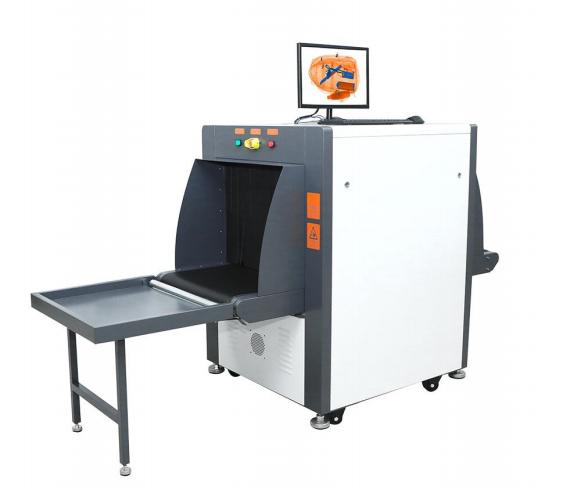

X-ray Baggage Scanne 6550A
The X-ray Baggage Scanne 6550A is a premium X-ray security screening solution designed for a wide range of applications including airports, subway stations, government facilities, and major event venues. It integrates high efficiency with safety, providing rapid and accurate inspection of items to ensure public safety.
Key Features:

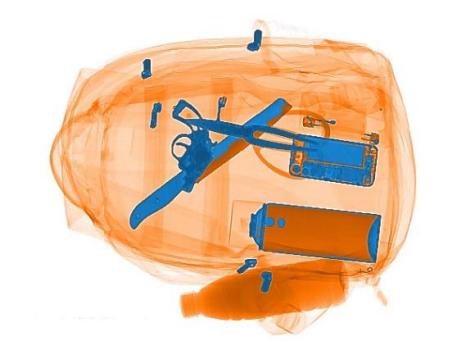

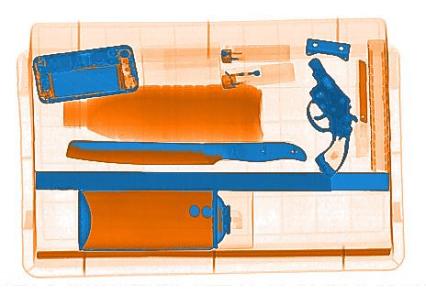

- Image Display Processing: Offers a diverse range of image display modes such as color, grayscale, negative, mixed, high penetration, low penetration, enhancement, reduction, local enhancement, edge enhancement, brightness adjustment, darkness adjustment, organic/inorganic differentiation, and mouse wheel zoom for detailed inspection.
- Smart System Functions: Incorporates an intelligent roller (energy-saving function), self-diagnosis upon startup, automatic calibration, multi-level user management, image management, TIP management, curve diagnostics, system device information, versatile image storage formats, and image query capabilities.
- Large Image Storage Capacity: Equipped with an industrial control host featuring a 500GB hard drive capable of storing over 2.5 million images, which can be easily transferred and reviewed on other computers.
- Bidirectional Scanning: Optionally supports scanning in both forward and reverse directions without compromising image quality.
- High-Performance Hardware: Features a 19-inch LCD monitor with VGA interface and an independent operator console. Utilizes an L-shaped detector array with high-definition digital detection boards and an X-ray generator with a tube voltage of 80kV and adjustable tube current of 0.6mA, ensuring clarity and penetration power.
- Safety and Environmental Design: Employs a DC24V safe voltage for quiet linear motorized rollers with adjustable speed up to 0.25m/s. Fitted with double-layer lead curtains at the entry and exit for efficient radiation shielding, complying with the latest national standard GB15208.1-2018 with a leakage dose rate less than 1μSv/h at 10cm from the equipment surface. The exit includes a standard item collection shelf designed to prevent item drop and with anti-pinch protection for added safety.
Technical Specifications Highlights:

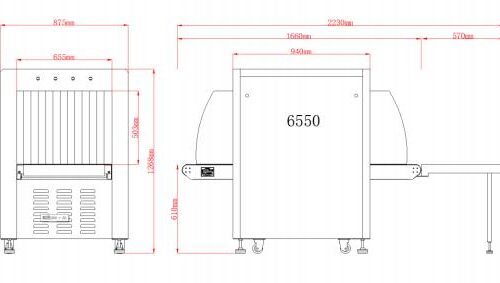

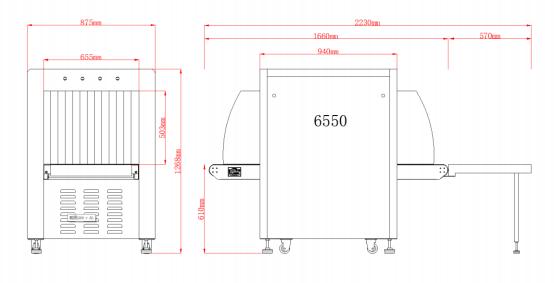

- Tunnel Size: 65cm (Width) x 50cm (Height)
- Conveyor Belt Speed: 0.23 meters per second
- Maximum Load Capacity: 100 kilograms
- Penetration Capability: Up to 11mm steel plate
- Wire Resolution: Φ0.0787mm metal wire
- Penetration Resolution: Φ0.127mm metal wire
- Spatial Resolution: Φ1.0mm
- Single Inspection Dose: Less than 1μGy
In summary, the X-ray Baggage Scanne 6550A Security Scanner stands out with its exceptional performance, high level of intelligence, rigorous safety controls, and user-friendly design, offering professional and reliable inspection solutions across various security screening scenarios.
Security Inspection Machine 6550A Specifications
Accessories Configuration
|
Frame |
Laser cutting processing, powder coating, anti-corrosion and rust-proof; |
|
Receiving Rack |
Standard receiving rack at the exit, to prevent items from falling and getting damaged, anti-pinch design at the connection for safe and reliable operation. |
| Motor |
DC24V safe voltage, silent straight-line electric drum motor. Speed adjustable from 0-0.25m/s. |
|
Main Unit |
Industrial control host, 500G hard drive. Capable of storing up to 2.5 million images. |
| Monitor |
19-inch LCD monitor, VGA interface. Comes with a separate control desk. |
|
X-ray Detector |
L-shaped detection array, high-definition digital detection board. |
| X-ray Generator |
Tube voltage 80KV, tube current 0.6mA (adjustable); sealed oil cooling + external air cooling. |
|
Electrical Circuitry |
PCB main control circuit, clear identification, Meanwell power supply; |
| Lead Curtain |
1 layer of lead curtain at the front and back for efficient radiation protection. |
Device Functions
|
Image Display Processing |
Color, grayscale, inverse color, mixed, high penetration, low penetration, enhancement, reduction, local enhancement, edge+, edge-, brighten, darken, organic, inorganic, magnification with mouse middle button; |
|
System Functions |
Intelligent drum (energy-saving feature), self-check upon power-up, automatic calibration, multi-level user management, image management, TIP management, curve diagnosis, system device information, various formats of image storage, image query. |
|
One-key Power-off |
To power off, simply rotate the key for a safe shutdown. |
| Self-check upon Power-up |
After powering on, the system automatically checks if all accessories are functioning properly. |
|
Image Storage |
Supports various formats of image storage, can be easily transferred to other computers for review; image storage capacity is greater than 2.5 million images;images. |
| Bidirectional Scanning |
Can scan and produce images in both forward and reverse directions (optional feature); |
Performance Indicators
|
Tunnel Size |
65cm (W) * 50cm (H) |
| Conveyor Speed |
0.23m/s |
|
Max. Load Cap. |
100 kg |
| Penetrating |
11mm steel plate |
|
Line Resolution |
Φ0.0787mm metal wire |
| Penetrating Resolution |
Φ0.127mm metal wire |
|
Spatial Resolution |
Φ1.0mm |
| Single Check Dose |
Less than 1μGy |
|
Leakage Radiation Dose Rate |
Less than 1μSv/h (10cm away from the outer surface of the device), in compliance with the new national standard GB15208.1-2018. |
