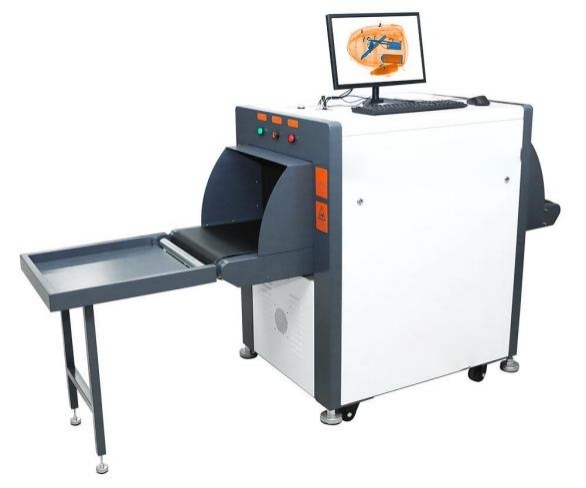

5030A high-definition X-ray Baggage Scanner
5030A high-definition X-ray Baggage Scanner security inspection machine is a high-performance security inspection solution
designed specifically for enterprise-level security needs. Its core advantage lies in its strong penetration power, which can easily
penetrate 11 mm-thick steel plates to ensure in-depth inspection of various packages and luggage. The image display processing
function is rich, supporting multiple modes such as color and grayscale, as well as advanced functions such as image enhancement,
weakening, and local magnification. It is especially equipped with the ability to distinguish between organic and inorganic substances to make identification more accurate.
This security inspection machine is equipped with intelligent system functions, such as optional smart rollers, high-density
and liquid alarm systems, coupled with power-on self-check and automatic calibration, to ensure that the equipment is always
in the best working condition. Its one-button shutdown design simplifies the operation process, and the massive storage capacity
of more than 2.5 million images, combined with flexible image management and multi-format storage support, facilitates
subsequent query and analysis.
In terms of safety, XS-5030A adopts a low-radiation design, with a single inspection dose of less than 1μ㏉ and a leakage
radiation dose rate of less than 1μSv/h, which fully complies with the latest national standard GB15208.1-2018. Anti-radiation
lead curtains are configured on the front and back, effectively protecting the health of operators and the public. In addition,
the equipment adopts a laser-cut and powder-coated paint process frame, which is anti-corrosion and rust-proof, and is
equipped with a silent linear electric roller and an embedded industrial control motherboard, reflecting the perfect
combination of durability and intelligence.
Security Inspection Machine 5030A Specifications
Accessories Configuration
|
Frame |
Laser cutting processing, powder coating, anti-corrosion and rust-proof; |
|
Receiving Rack |
Standard receiving rack at the exit, to prevent items from falling and getting damaged, anti-pinch design at the connection for safe and reliable operation. |
|
Motor |
DC24V safe voltage, silent straight-line electric drum motor. Speed adjustable from 0-0.25m/s. |
|
Main Unit |
Embedded industrial control motherboard, 500G hard drive. Capable of storing up to 2.5 million images. |
|
Monitor |
19-inch LCD monitor, VGA interface. Optional operation desk available. |
|
X-ray Detector |
L-shaped detection array, high-definition digital detection board. |
|
X-ray Generator |
Tube voltage 80KV, tube current 0.6mA (adjustable); sealed oil cooling + external air cooling |
|
Electrical Circuitry |
PCB main control circuit, clear identification; |
|
Lead Curtain
|
1 layer of lead curtain at the front and back, staggered installation for efficient radiation protection. (Optional 2 layer available) |
Device Functions
|

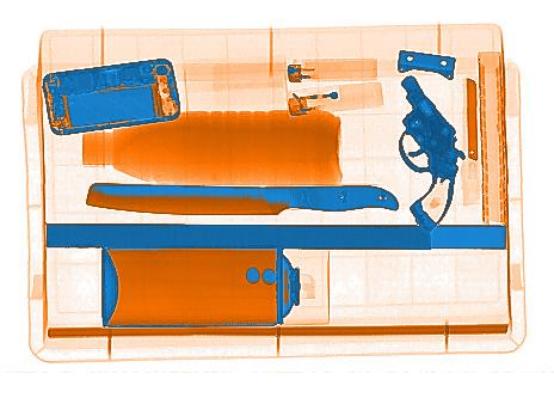

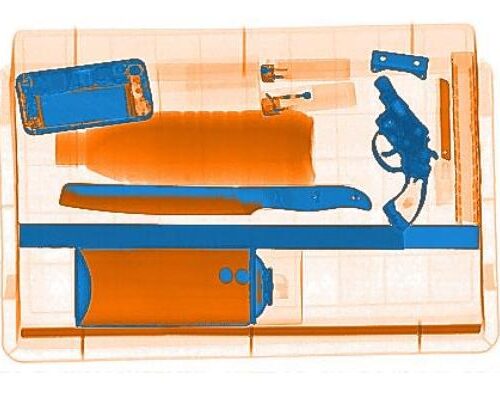

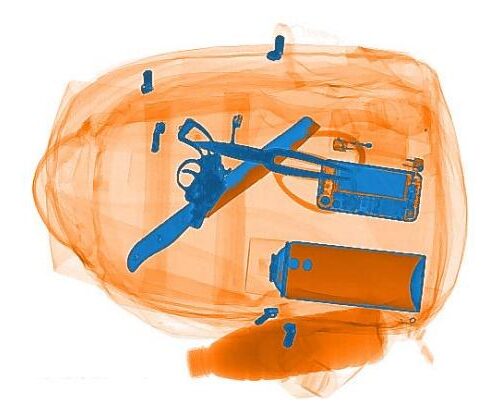

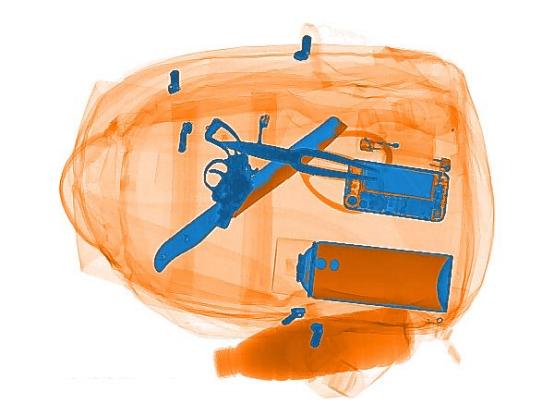

Image Display Processing |
Color, grayscale, inverse color, mixed, high penetration, low penetration, enhancement, reduction, local enhancement, edge+, edge-, brighten, darken, organic, inorganic, magnification with mouse middle button; |
|
System Functions |
Intelligent drum (optional), high-density alarm (optional), liquid alarm (optional), self-check upon power-up, automatic calibration, multi-level user management, image management, TIP management, curve diagnosis, system device information, various formats of image storage, image query. |
|
One-key Power-off |
To power off, simply rotate the key for a safe shutdown. |
|
Self-check upon Power-up |
After powering on, the system automatically checks if all accessories are functioning properly. |
|
Image Storage |
Supports various formats of image storage, can be easily transferred to other computers for review; image storage capacity is greater than 2.5 million images; |
Performance Indicators
|

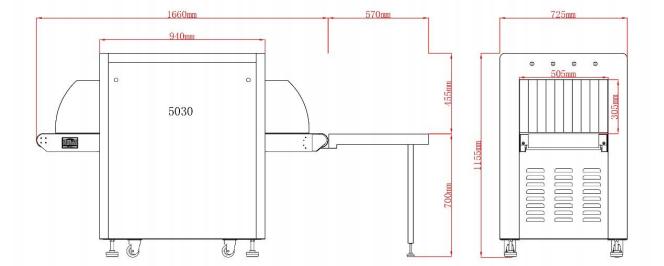

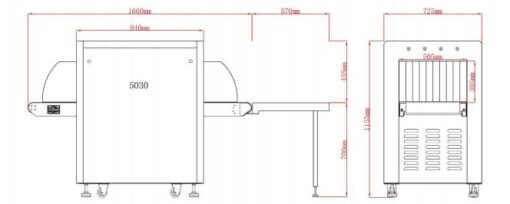

Tunnel Size |
50cm(W)*30cm（H） |
|
Conveyor Speed |
0.23m/s |
|
Max. Load Cap. |
100kg |
|
Penetrating
|
11mm steel plate |
| Line Resolution
|
Φ0.0787mm metal wire |
|
Penetrating Resolution
|
Φ0.127mm metal wire |
|
Spatial Resolution
|
Φ1.0mm |
|
Single Check Dose
|
Less than 1μGy |
| Leakage Radiation Dose Rate |
Less than 1μSv/h (10cm away from the outer surface of the device), in compliance with the new national standard GB15208.1-2018. |
