Double-Frequency Metallic Mine Detector
Double-Frequency Metallic Mine Detector is designed for personnel mine detecting and as well the corollary equipment of vehicular military mine detectors to improve its performance. It overcomes the shortcomings of traditional single-frequency
metallic detector that can hardly operate in the electric and magnetic conditions such as seawater and magnetic soil. Providing ability of high sensitivity and resolution, the Double-Frequency Metallic Detector can chieve accurately static
localization. Its ability of operation in all kinds of climate and soil conditions such as high-fever, severe cold and seawater, fresh water, laterite, clay soil, magnetic soil and beach soil meet the requirement of army for full-terrain. At the same time, the intelligentized design is incorporated, so that it can be performed more conveniently.

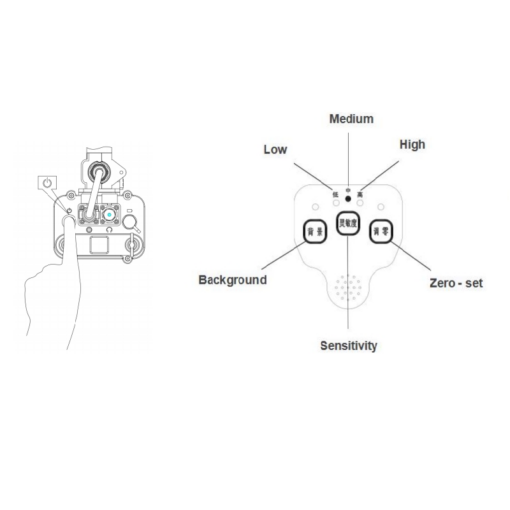

Metallic mine detectors’ sensitivity could be adjustable by three selection.
Detecting sensitivity: GLD111 Anti-personnel Mine≥12cm
GLD212 Anti-tank Mine≥13cm
Positioning accuracy: ≤4cm ( The distance between location andmine edge)
Mean detectivity: ≥97%
Continuous working hours: ≥ 24 hours(lithium battery)
Automatic low voltage alarm
Temperature range: – 40℃- + 55℃ (exclude the battery)
Watertightness: Waterproof at the depth of 1 meter
Dimensions and Weight:
The Searching coil diameter: Φ250mm
Length of the staff：750—1450mm
Host weight: ≤2.9 kg（include lithium battery）
≤3.2 kg (include 3 pieces of LR20 batteries )
