Overview

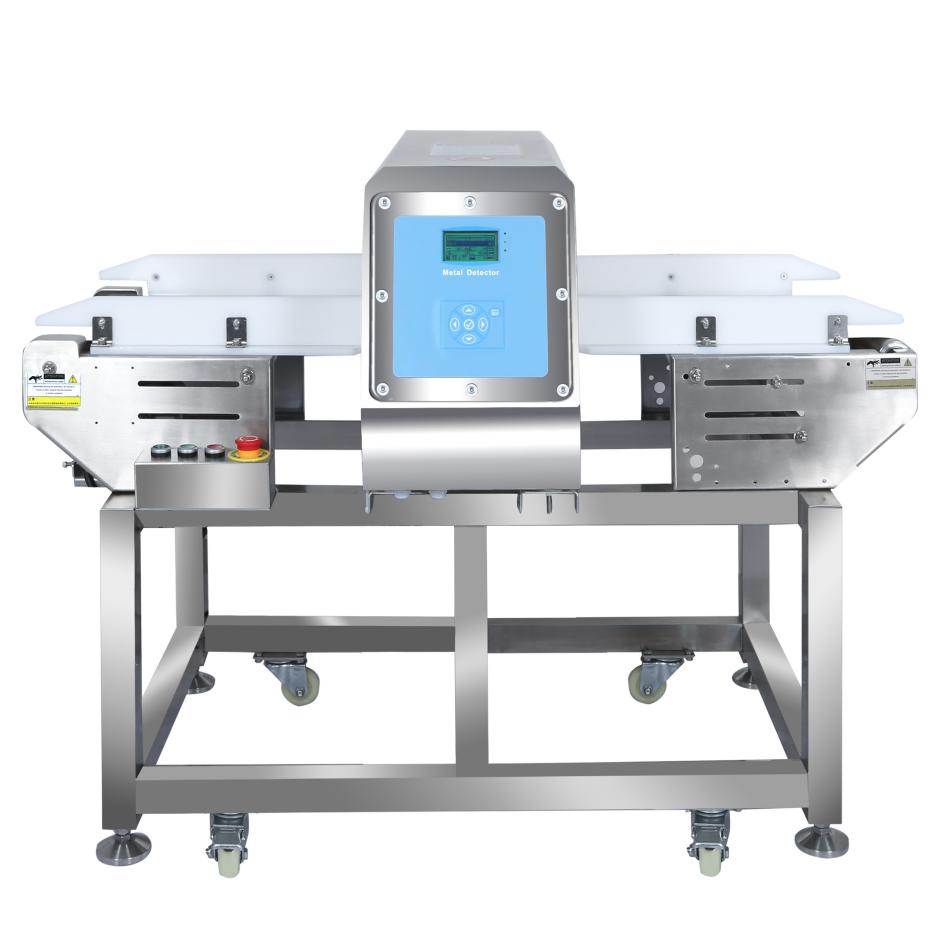

The FSD-2023 is a stainless steel conveyor belt metal detector with a 500 x 150 mm detection window, engineered for reliable metal contaminant detection in food, pharmaceutical and chemical processing lines. Its sealed detection coil and 304 stainless steel construction ensure durability and hygiene in demanding production environments.
Key Capabilities
- Detects both ferrous and non-ferrous metal contaminants
- Conveyor belt transport with alarm and stop reject method
- Sealed stainless-steel detection coil for hygiene and durability
- 304 stainless steel construction throughout
- Food-grade PU conveyor belt
- Sound and light alarm with automatic stop upon detection
Technical Specifications
| Detection window | 500 x 150 mm |
| Conveyor dimensions | 2000 x 400 mm |
| Overall dimensions | 2000 x 900 x 1080 mm |
| Height | 800 ± 100 mm |
| Construction | 304 stainless steel |
| Power supply | AC 220 V, 50/60 Hz |
| Power consumption | 0.25 kW |
| Detection sensitivity (empty machine) | Fe 1.0 mm / Non-Fe 1.5 mm |
| Maximum product weight | 50 kg |
| Conveyor speed | 20–30 m/min |
| Conveyor belt | Food-grade PU belt |
| Alarm type | Alarm and stop reject method |
Applications
Suitable for metal contaminant detection in food, pharmaceutical and chemical processing industries.
