Product Introduction

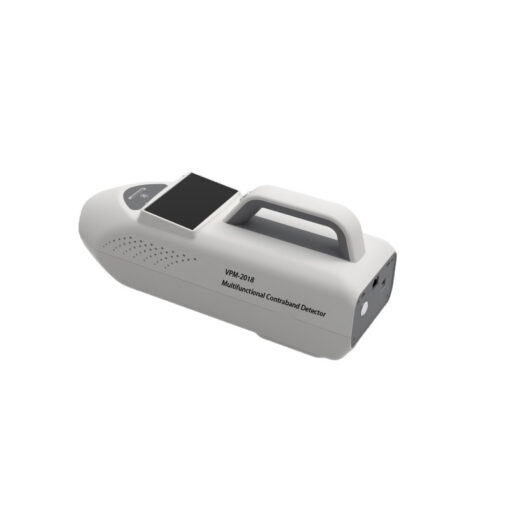

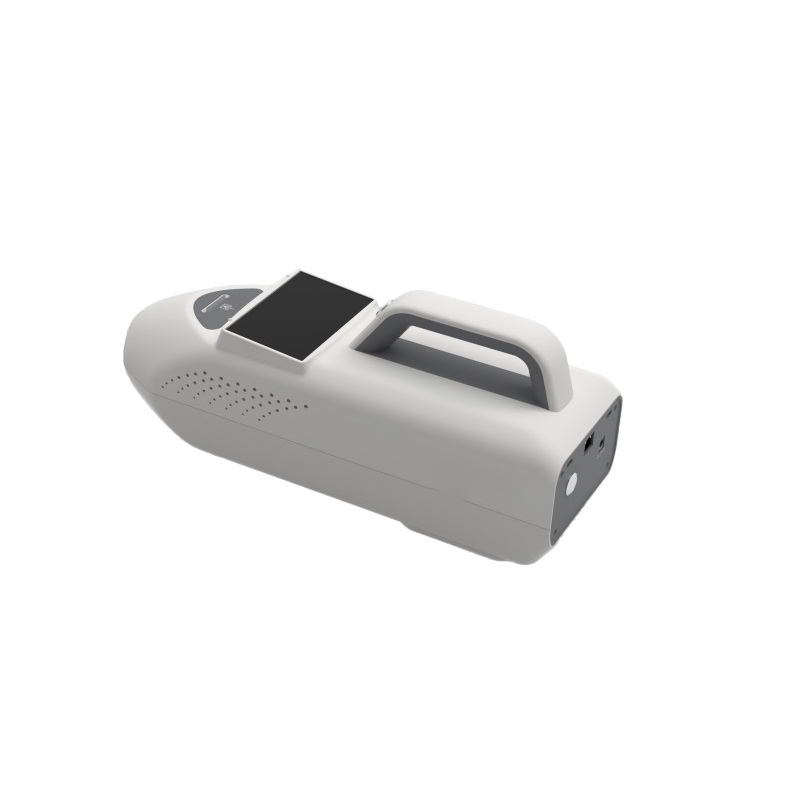

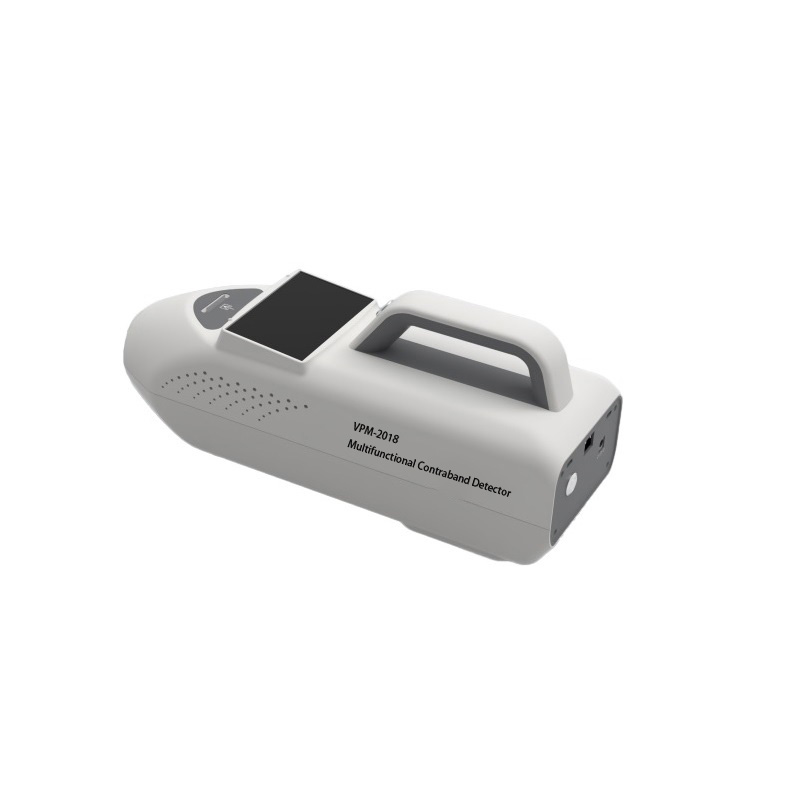

VPM-2018 multifunctional contraband detector is a security inspection equipment based on the principle of Ion Mobility Spectrometry (IMS). It can rapidly and accurately detect and identify trace amounts of explosives, various types of drugs, reaching an international advanced level among similar products. Using intelligent algorithms for swift screening enhances security check efficiency. Additionally, it boasts simple operation, guided maintenance, and user-friendly features. This product is suitable for deployment in airports, train stations, customs, border control, law enforcement, defense, customs enforcement, fire departments, and the military.
Technical Features
- Single-machine detection of explosives and drugs, allowing mixed detection.
- Intelligent algorithms enable rapid alarms, with user-selectable analysis times.
- One-touch startup for automatic readiness without the need for manual intervention.
- Rich communication interfaces supporting system networking.
- Low power consumption, long standby time, ideal for prolonged usage.
Technical Specifications
| Detection Principle | Ion Mobility Spectrometry (IMS) technology |
| Sample Collection Method | Solid particulate matter/liquid wipe sampling |
| Detectable amples | Explosives: TNT, HMX, Tetryl, Nitroglycerin, Ammonium Nitrate, Black Powder (with sulfur), DNT (Dinitrotoluene), PETN, Octogen, Picric Acid, GNA, C4, Semtex, TATP, Nitromethane, Comp B composite explosives, and other explosives. Additionally, new samples can be added as required. |
| Drugs: Cocaine Hydrochloride, Heroin Hydrochloride, Tetrahydrocannabinol (THC), Methamphetamine, Ketamine Hydrochloride, Morphine Hydrochloride, Pethidine, MDMA (Ecstasy), Morphine, Ephedrine, Ketamine, Methadone, Fentanyl, Oxazepam, and other
drugs and precursor chemicals. New samples can be added as required. |
|
| Sensitivity | In the range of nanograms to picograms (detection limit: TNT 200pg, Cocaine 200pg) |
| Preheating Time | ≤10min |
| Analysis Time | 2 to 32 seconds (selectable analysis time) |
| Alarm Format | Audio, visual, and visible alarms are available, and concealed alarms can also be selected. |
| Display | 4.3-inch color LCD touchscreen, supporting both Chinese/English and graphical interfaces. |
| Data Storage | Capable of storing no less than 300,000 detection records. |
| Communication Methods | Ethernet, USB interface, and wireless data transmission. |
| Input Voltage | Input Voltage (AC): 110V/220V, Operating Voltage (DC): 50/60Hz 24V, with a rated 18V lithium battery enabling the device to operate continuously for over 5 hours (standby for over 10 hours). |
| Operating Temperature | -20°C to +55°C, Relative Humidity ≤95% RH |
